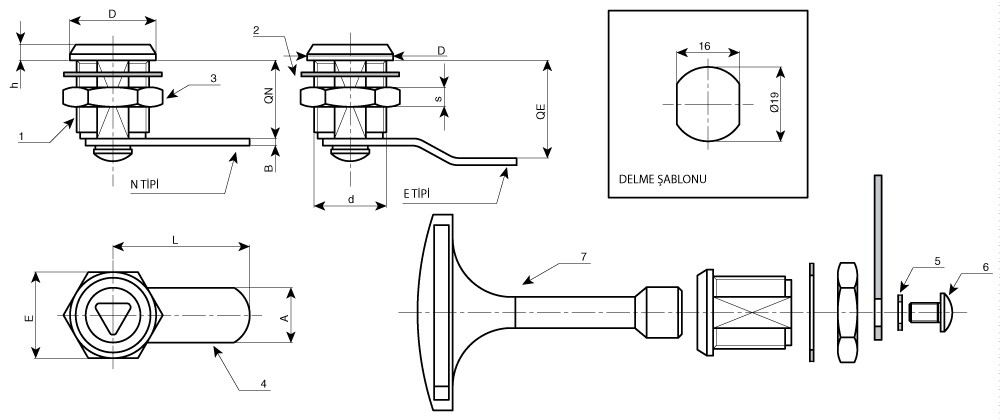

(1) Zamak cast lock body M19 rotor and handle. nickel plated. with 6mm triangular key
(2) Black oxidised, elastic washer. Diameter, 24×1 hole 19,4.
(3) Galvanized steel hexagonal nut M19x1.
(4) Galvanized steel lock handle. (Qn – N type flat – Qe – E type outward)
(5) Conical black oxidised steel elastic washer d.12×1,5.
(6) Galvanized steel Phillips domed bolt M5x8.
Turning diameter: 90°
Option (7): nickel plated, zamak cast key. (Code 472801001).
The key is optional. Order separately.
| Code No | d | L | Qn | Qe | D | h | A | B | E | S | Şekil |
| 472720001 | M19 | 35 | 20 | – | 22 | 4 | 14 | 2.5 | 22 | 5 | N |
| 472722000 | M19 | 35 | – | 22 | 22 | 4 | 14 | 2.5 | 22 | 5 | E |
| 472725101 | M19 | 30 | – | 25 | 22 | 4 | 14 | 2.5 | 22 | 5 | E |
| 472729101 | M19 | 39 | – | 29 | 22 | 4 | 14 | 2.5 | 22 | 5 | E |
| 472737101 | M19 | 35 | – | 37 | 22 | 4 | 14 | 2.5 | 22 | 5 | E |
