Adjustable, articulated toggle latch, made of cropped stainless steel.
Surface: Natural.
Catch plate is to be ordered separately.
Compatible catch plates: 478204101 is compatible for the following catch plates: 478304101 and 478304102. 478206101’in uyumlu olduğu yakalama tablaları: 478306101 ve 478306103. 478211101’in uyumlu olduğu yakalama tablaları: 478306101 ve 478306103.

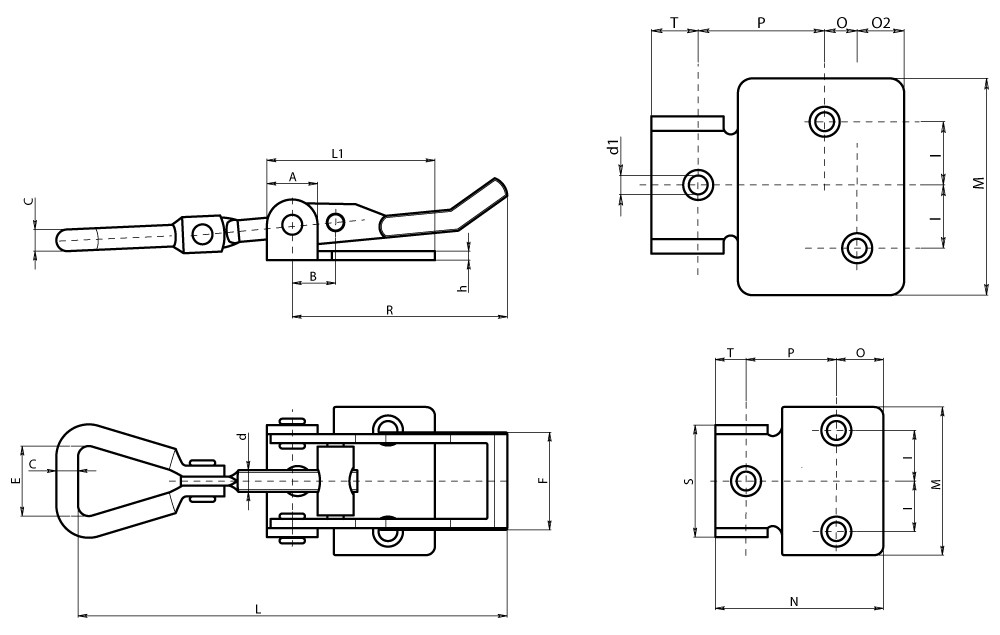

| Code No | R | L | L1/N | A | B | C | d | d1 | E | F | h | l | M | O | O2 | P | T | S |
| 478204101 | 48 | 66-75 | 35 | 10 | 11 | 4.3 | M5 | 5.5 | 18 | 17 | 2 | 7.5 | 28 | 9 | – | 12 | 14 | 20 |
| 478206101 | 65 | 104-124 | 46 | 14 | 12 | 6 | M6 | 5.1 | 24 | 25 | 3 | 13 | 41 | 13.5 | – | 24.5 | 8 | 31 |
| 478211101 | 112 | 160-175 | 70 | 20 | 14 | 7 | M8 | 7.5 | 24 | 30 | 2.5 | 17.5 | 60 | 9 | 13 | 35 | 13 | 37 |
