AC1401

With integrated fieldbus interface
Reliable and fast data exchange with the sensor actuator level

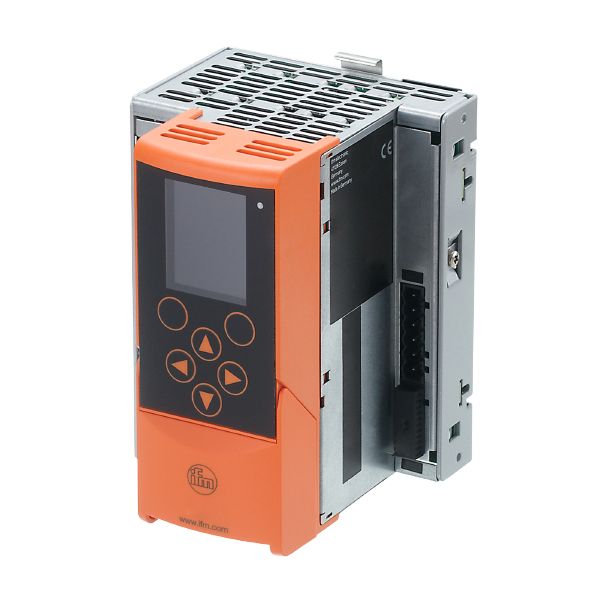

Colour display for indicating the status of all AS-i slaves
User-friendly and simple configuration, set-up and diagnosis
Quick-setup menu with intuitive operation

SKU: AC1401

$1.064,00

Description

Application

Application	PROFINET gateway

Electrical data

Operating voltage [V]	18…32 DC; (AUX; AS-i: 21…31,6 V DC)
Current consumption [mA]	< 500; (AUX / AS-i 1)
Max. current consumption from AS-i [mA]	500; (with external supply: 10 mA)
Number of AS-i masters	1
Electrical separation	yes

Outputs

Voltage range DC [V]	to PELV

Interfaces

Communication interface	Ethernet

Ethernet – Modbus TCP

Transmission rate	10 MBaud; 100 MBaud
Connector type	RJ45
Protocol	Modbus TCP
Usage type	programming

Ethernet – PROFINET

Transmission rate

100 MBaud

Connector type

RJ45

Protocol

PROFINET

Usage type

data transmission

Note on interfaces

Device Class B

Ethernet – TCP/IP

Transmission rate	10 MBaud; 100 MBaud
Connector type	RJ45
Protocol	TCP/IP
Usage type	programming

Ethernet – UDP/IP

Transmission rate	10 MBaud; 100 MBaud
Connector type	RJ45
Protocol	UDP/IP
Usage type	programming

Operating conditions

Ambient temperature [°C]	0…60
Storage temperature [°C]	-20…70
Protection	IP 20

Tests / approvals

MTTF [years]	46

AS-i classification

AS-i version	3.0
AS-i profile	M4
AS-i certificate	97301

Mechanical data

Weight [g]	711

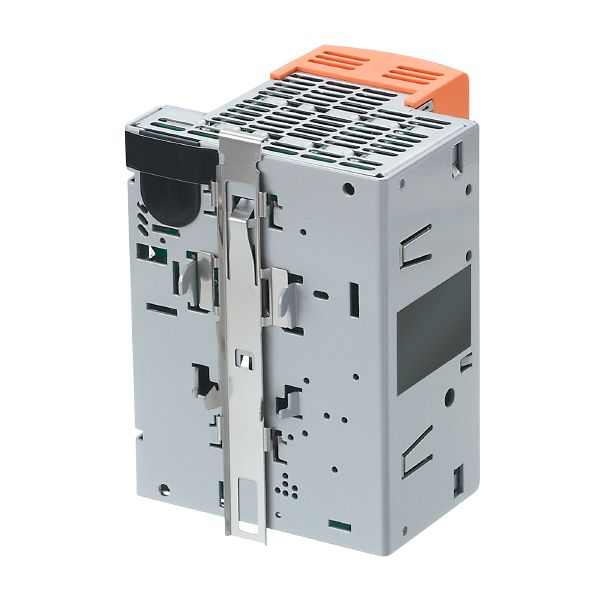

Housing	housing for DIN rail mounting
Materials	aluminium powder-coated; steel sheet galvanised; PC

Displays / operating elements

Display

function	1 x LED, red/green
	full graphic LCD display

Accessories

Items supplied

terminals

Accessories (optional)

licence: “CODESYS V3”, E71400

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	terminals: …2.5 mm²

AC1401.PDF

Datasheet
EN PDF
