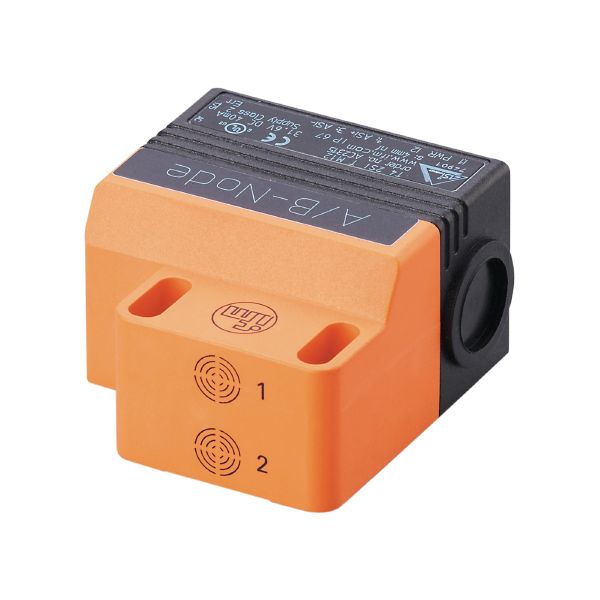

AC2315 - Image 2

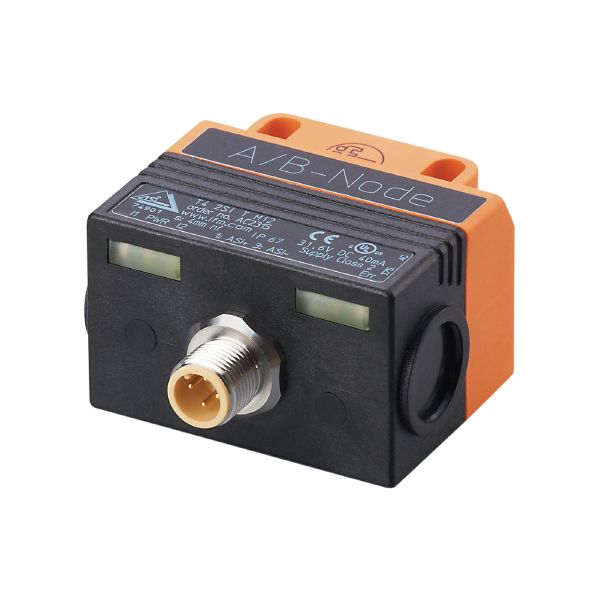

AC2315 - Image 3

AC2315

For monitoring valve positions
For reliable position feedback on valve actuators
Non-contact and self-cleaning system
Quick and secure mounting with only three screws
High shock and vibration resistance

SKU: AC2315

$158,40

Description

Product characteristics

Electrical design	AS-i
Sensing range [mm]	4
Dimensions [mm]	55 x 60 x 35

Electrical data

Operating voltage [V]	26.5…31.6 DC; (“supply class 2” to cULus)
Current consumption [mA]	< 40

Outputs

Electrical design	AS-i

Detection zone

Sensing range [mm]	4

Operating conditions

Ambient temperature [°C]	-20…70
Protection	IP 67

Tests / approvals

EMC

EN 50295
EN 61000-6-2

MTTF [years]

924

AS-i classification

AS-i version	2.1
Extended addressing mode	yes
AS-i I/O configuration [hex]	0
AS-i ID code [hex]	A.F
AS-i certificate	74901

Mechanical data

Weight [g]	149.5
Mounting	non-flush mountable
Dimensions [mm]	55 x 60 x 35
Materials	PBT

Displays / operating elements

Display

switching status

2 x LED, yellow

Accessories

Items supplied

Reinforcement bracket

socket head screws: 2 x M5 x 35

washers: 2

Remarks

Pack quantity	1 pcs.

AC2315

Datasheet
EN PDF
