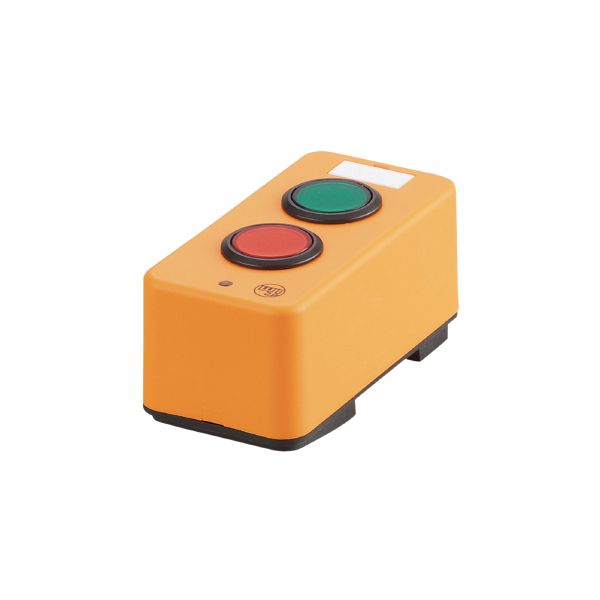

AC2388

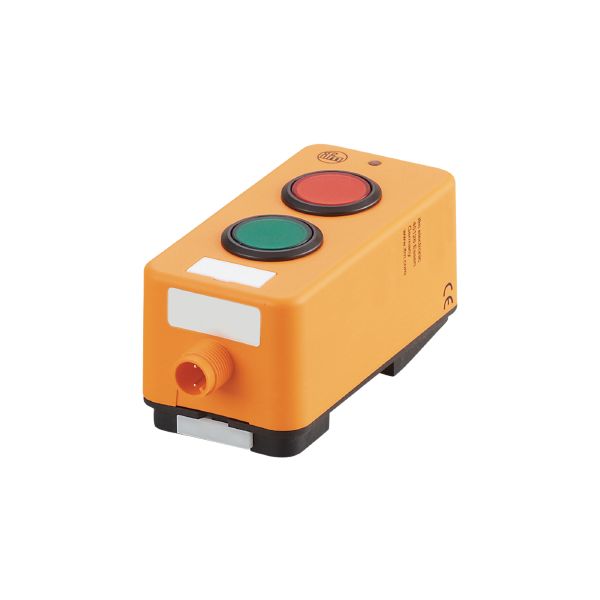

AC2388 - Image 2

AC2388 - Image 3

AC2388

Use as start/stop button or as acknowledgement button on machines
Pushbuttons with tactile press point as protection against accidental contact
Clearly visible LEDs as optical feedback for actuation
Active triggering via AS-interface
High protection rating for the requirements of harsh industrial environments

SKU: AC2388

$166,40

Description

Application

Application	field installation

Electrical data

Operating voltage [V]	26.5…31.6 DC
Max. current consumption from AS-i [mA]	55

Inputs

Sensor supply of the inputs	AS-i

Operating conditions

Ambient temperature [°C]	-25…60
Storage temperature [°C]	-40…85
Protection	IP 67

Tests / approvals

EMC

EN 61000-6-2
EN 62026-2

AS-i classification

AS-i version

2.11; 3.0

Extended addressing mode

yes

AS-i profile

S-7.A.E

AS-i I/O configuration [hex]

7

AS-i ID code [hex]

A.E

AS-i certificate

133801

Assignment of the data bits

data bit	D0	D1	D2	D3
LED 1	DO-0	–	–	–
LED 2	–	DO-1	–	–
pushbutton 1	DI-0	–	–	–
pushbutton 2	–	DI-1	–	–

Mechanical data

Weight [g]	133
Type of mounting	mounting on DIN rail
Dimensions [mm]	89.6 x 46 x 45
Materials	PA

Displays / operating elements

Display

operation	LED, green
errors	LED, red

Operating elements

2	freely programmable backlit function keys

Electrical connection

Module connection	M12

Remarks

Pack quantity	1 pcs.

AC2388

Datasheet
EN PDF
