AC422S

AC422S - Image 2

AC422S - Image 3

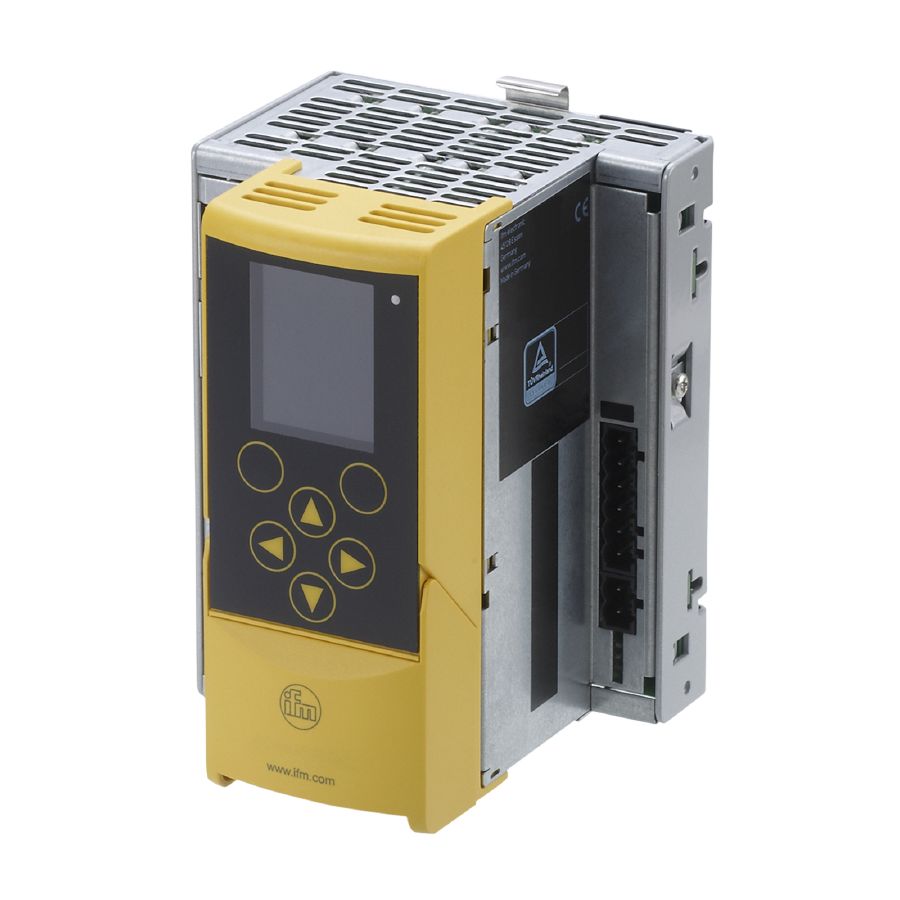

AC422S

With integrated fieldbus interface and fail-safe PLC
Reliable and fast data exchange with the sensor actuator level
Colour display for indicating the status of all AS-i slaves
User-friendly and simple configuration, set-up and diagnosis
Quick-setup menu with intuitive operation

SKU: AC422S

$1.647,70

Description

Application

Application	EtherNet/IP gateway with safe preprocessing

Electrical data

Operating voltage [V]	18…32 DC; (AUX)
Current consumption [mA]	< 750
Max. current consumption from AS-i [mA]	AS-i 1: 10 mA; AS-i 2: 10 mA
Number of AS-i masters	2
Electrical separation	yes

Inputs

Input circuit of digital inputs	PNP; (type 2 according to IEC 61131-2)
Sensor supply of the inputs	to SELV/PELV
Power supply [V]	18…24

Outputs

Circuit	PNP
Voltage range DC [V]	18…32; (to SELV/PELV)
Max. current load per output [mA]	500
Short-circuit proof	yes
Electrically separated	yes

Interfaces

Communication interface	Ethernet

Ethernet – EtherCAT

Protocol	EtherCAT
Usage type	programming

Ethernet – EtherNet/IP

Transmission rate	100 MBaud
Protocol	EtherNet/IP
Usage type	data transmission; programming

Ethernet – FSoE

Protocol	FSoE

Ethernet – Modbus TCP

Transmission rate	10 MBaud; 100 MBaud
Connector type	RJ45
Protocol	Modbus TCP
Usage type	programming

Ethernet – TCP/IP

Transmission rate	10 MBaud; 100 MBaud
Connector type	RJ45
Protocol	TCP/IP
Usage type	programming

Ethernet – UDP/IP

Transmission rate	10 MBaud; 100 MBaud
Connector type	RJ45
Protocol	UDP/IP
Usage type	programming

Operating conditions

Ambient temperature [°C]	0…45
Storage temperature [°C]	-20…70
Protection	IP 20

Safety classification

Complies with the requirements

ISO 13849-1: 2015 category 4, PL e

IEC 61508 SIL 3

Mission time TM [h]

175200

Mission time TM (additional indication)

20 years

PFH [1/h]

1,21E-08

AS-i classification

AS-i version	3.0
AS-i profile	M4
AS-i certificate	125301

Mechanical data

Weight [g]	811
Housing	housing for DIN rail mounting
Materials	aluminium powder-coated; steel sheet galvanised; PC

Displays / operating elements

Display

function	1 x LED, red/green
	full graphic LCD display

Accessories

Items supplied

terminals

Remarks

Pack quantity	1 pcs.

Comprehensive technical data in pdf format
