$385,30

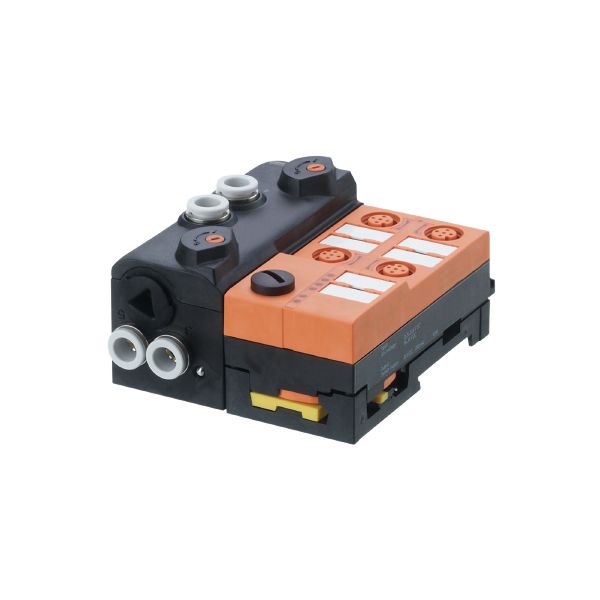

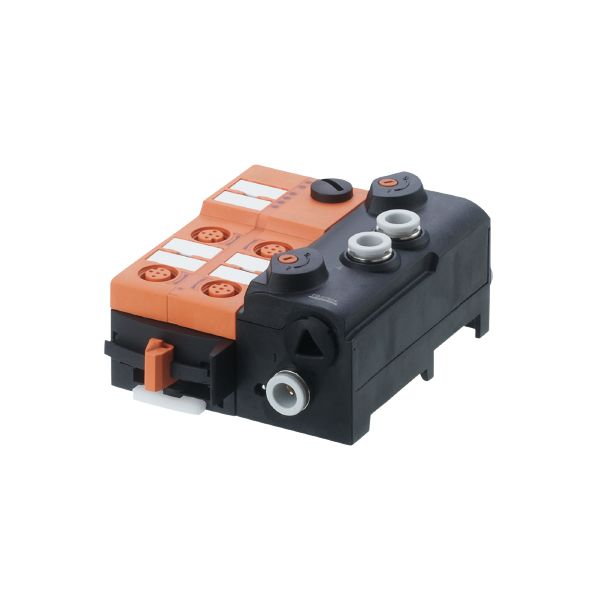

| Application | AS-i ATEX module |
|---|
| Operating voltage [V] | 26.5…31.6 DC |
|---|---|
| Max. current consumption from AS-i [mA] | 280 |
| Integrated watchdog | yes |
| Number of inputs and outputs | Number of digital inputs: 4; Number of pneumatic outputs: 2 |
|---|
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AS-i |
| Power supply [V] | 20…30; (via flat cable) |
| Max. total current rating of inputs [mA] | 200 |
| Input current High [mA] | 6…10 |
| Input current Low [mA] | 0…2 |
| Switching level high [V] | > 11 |
| Digital inputs protected against short circuits | yes |
| Electrical design | AS-i |
|---|---|
| Number of pneumatic outputs | 2 |
| Ambient temperature [°C] | -10…50 |
|---|---|
| Protection | IP 50 |
| ATEX marking | |||||
|---|---|---|---|---|---|
| EMC |
|
||||
| MTTF [years] | 258 |
| AS-i version | 2.11; 3.0 | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AS-i addressing | addressing socket | |||||||||||||||||||||||||
| Extended addressing mode | yes | |||||||||||||||||||||||||
| AS-i profile | S-7.A.E | |||||||||||||||||||||||||
| AS-i I/O configuration [hex] | 7 | |||||||||||||||||||||||||
| AS-i ID code [hex] | A.E | |||||||||||||||||||||||||
| AS-i certificate pending | yes | |||||||||||||||||||||||||
| Assignment of the data bits |
|
| Weight [g] | 421 |
|---|---|
| Type of mounting | quick mounting |
| Materials | PA; POM; piercing contacts: CuSn6 nickel-plated and tin-plated |
| Pneumatic system | 1 x 5/3-way slide valve (free from overlapping); middle position blocked |
| Operating pressure range [bar] | 3…8 |
| Operating pressure range [MPa] | 0.3…0.8 |
| Air flow at 6/5 bar [l/min] | 400 |
| Permissible compressed air | non-lubricated compressed air class 6-3-1; lubricated compressed air class 6-3-4 |
| Manual override | pressing/releasing or pressing/turning/locking |
| Tube fittings | 8 mm |
| Exhaust | exhaust can be discharged through tube connection |
| Display |
|
|---|
| Module connection | Flat cables |
|---|
| Items supplied |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Accessories (optional) |
|
| Remarks |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | quick mounting technology for AS-i flat cable: ; three orientations possible |
|---|---|
| Connection | Connector: M12; coding: A |
| Pneumatic symbol
|
|
|---|
