| Structural design | Directly controlled poppet valve |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | G1/4 |
| Electrical connection | Form APlugas per EN 175301-803Rectangular design |
| Nominal width | 1 mm |
| Valve function | 2/2, closed, monostable |
| Manual override | None |
| Flow direction | Non-reversible |
| Medium | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gasMineral oilWaterNeutral liquidsOther flow media on request |
| Nominal pressure of fitting PN | 50 |
| Pressure difference | 0 MPa |
| Differential pressure | 0 bar |
| Pressure difference | 0 psi |
| Coil characteristics | 24 V DC: 6.8 W |
| Insulation class | H |
| Permissible voltage fluctuations | +/- 10 % |
| Duty cycle | 100% |
| Reset method | Mechanical spring |
| Type of control | Direct |

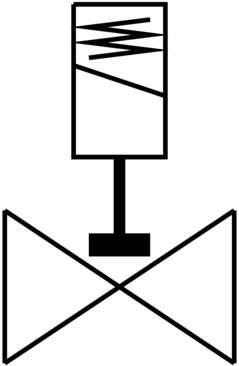

| Symbol | 00992979 |
| Medium pressure | 0 MPa … 5 MPa |
| Medium pressure | 0 bar … 50 bar |
| Medium pressure | 0 psi … 725 psi |
| Max. viscosity | 22 mm²/s |
| Temperature of medium | -10 °C … 80 °C |
| Ambient temperature | -10 °C … 35 °C |
| Leak rate to EN 12266-1 | A |
| Flow rate Kv | 0.06 m³/h |
| Standard nominal flow rate | 60 l/min |
| On switching time | 25 ms |
| Switching time off | 10 ms |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | Brass |
| Material number of housing | CW614N |
| Seals material | FPM |
| Product weight | 350 g |
| Degree of protection | IP65 |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
