| Valve function | 5/2, bistable |
| Actuation type | Electrical |
| Width | 32 mm |
| Standard nominal flow rate | 1350 l/min |
| Pneumatic working port | NAMUR connection diagram |
| Operating voltage | 24V DC |
| Operating pressure | 1.5 bar … 10 bar |
| Structural design | Piston gate valve |
| Certification | c UL us – Recognized (OL) |
| Certificate issuing authority | DNVGL-TAA000011J |
| Degree of protection | IP65IP67With plug socketas per IEC 60529 |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | VDI/VDE 3845 (NAMUR) |
| Manual override | DetentingNon-detenting |
| Type of control | Pilot-controlled |
| Pilot air supply port | Internal |
| Flow direction | Non-reversible |

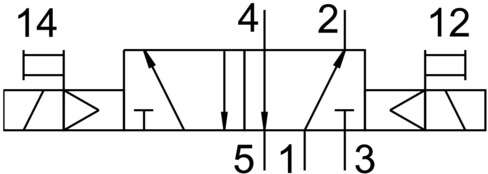

| Symbol | 00991005 |
| Lap | Overlap |
| Signal status display | With accessories |
| b-value | 0.4 |
| C value | 5.6 l/sbar |
| Changeover time | 11 ms |
| Duty cycle | 100% |
| Coil characteristics | 24 V DC: 3.3 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Temperature of medium | -20 °C … 60 °C |
| Ambient temperature | -20 °C … 60 °C |
| Product weight | 440 g |
| Electrical connection | 3-pinForm BPlugAs per industrial standard (11 mm) |
| Type of mounting | With through-hole |
| Venting hole connection | Not ducted |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | NAMUR connection diagram |
| Pneumatic connection 3 | G1/4 |
| Pneumatic connection 4 | NAMUR connection diagram |
| Pneumatic connection 5 | G1/4 |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Housing material | Wrought aluminum alloy |
| Material of screws | High-alloy stainless steel |
