Air solenoid valve

GTIN: 4052568110857

6154

SKU: CM-5/2-1/4-FH

Description

Valve function 5/2, monostable
Actuation type Electrical
Standard nominal flow rate 1400 l/min
Pneumatic working port G1/4
Operating pressure 1.5 bar … 8 bar
Nominal width 6.5 mm
Mounting position Any
Manual override Non-detenting

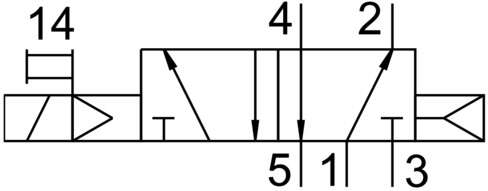

Symbol 00991049
Max. switching frequency 40 Hz
On switching time 28 ms
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Temperature of medium -10 °C … 60 °C
Type of mounting On sub-base
Pilot air port 12 G1/8
Pilot air port 14 G1/8
Pneumatic connection 1 G1/4
Pneumatic connection 2
Pneumatic connection 3 G1/4
Pneumatic connection 4 G1/4
Pneumatic connection 5 G1/4
Note on materials Contains paint-wetting impairment substances
Seals material NBR
Housing material Wrought aluminum alloy
Diaphragm material PUR

Technical data
