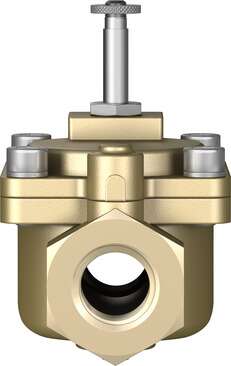

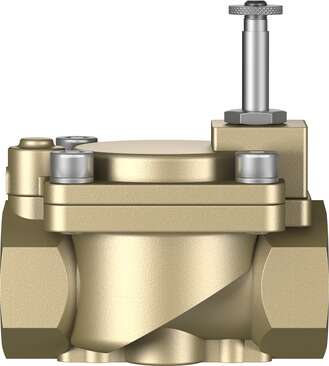

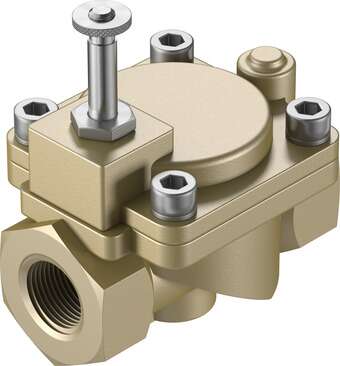

| Structural design | Diaphragm valveservo-controlled |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Preferably upright |
| Type of mounting | Line installation |
| Fitting connection | 3/8 NPT |
| Electrical connection | Solenoid coil type MD-… , coil can be ordered as an accessory |
| Nominal width | 13.5 mm |
| Valve function | 2/2, closed, monostable |
| Flow direction | Non-reversible |
| Medium | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gasWaterNeutral liquids |
| Medium pressure of liquid media | 0.5 bar … 6 bar |
| Medium pressure of gaseous media | 0.5 bar … 10 bar |
| Differential pressure | 0.5 bar |
| Type of control | Pilot-controlled |
| Symbol | 00995681 |
| Max. viscosity | 22 mm²/s |
| Temperature of medium | -10 °C … 60 °C |
| Temperature of liquid media | 5 °C … 50 °C |
| Ambient temperature | -10 °C … 60 °C |
| Flow rate Kv | 2 m³/h |
| Standard nominal flow rate | 2100 l/min |
| On switching time | 8 ms |
| Response time “on” for liquid media | 110 ms |
| Switching time off | 10 ms |
| Response time “off” for liquid media | 210 ms |
| b-value | 0.35 |
| C value | 8.8 l/sbar |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | Brass |
| Material number of housing | 2.0402 |
| Seals material | NBR |
| Armature tube material | High-alloy steel |
| Product weight | 450 g |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Max. torque for cover screw | 20 Nm |
| Max. tightening torque for connecting thread | 60 Nm |
| Max. tightening torque for coil fastening | 0.5 Nm |
