Air solenoid valve

Description

• Valve function5/2, bistable
• Actuation typeElectrical
• Width24 mm
• Standard nominal flow rate3200 l/min
• Pneumatic working portG3/8
• Operating voltage230V AC
• Operating pressure-0.09 MPa … 1 MPa
• Operating pressure-0.9 bar … 10 bar
• Structural designPiston gate valve
• Certificationc UL us – Recognized (OL)
• Maritime classificationSee certificate
• CE marking (see declaration of conformity)As per EU low voltage directive
• UKCA marking (see declaration of conformity)To UK instructions for electrical equipment
• Degree of protectionIP65With plug socketas per IEC 60529
• Nominal width11 mm
• Exhaust air functionWith flow control option
• Sealing principleSoft
• Mounting positionAny
• Manual overrideDetenting via accessoryNon-detenting
• Type of controlPilot-controlled
• Pilot air supply portExternal
• Flow directionReversible

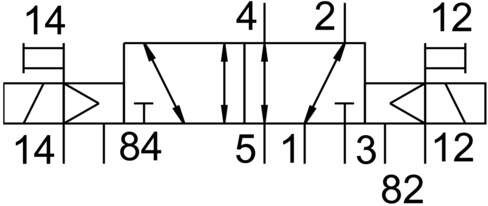

• Symbol00991016
• Valve position IDLabel holder
• LapOverlap
• Pilot pressure MPa0.2 MPa … 1 MPa
• Pilot pressure2 bar … 10 bar
• Changeover time25 ms
• Duty cycle100%
• Max. positive test pulse with 0 signal3300 µs
• Max. negative test pulse on 1 signal3100 µs
• Coil characteristics230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
• Permissible voltage fluctuations-15 % / +10 %
• Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
• Vibration resistanceTransport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Shock resistanceShock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Corrosion resistance class (CRC)2 – Moderate corrosion stress
• Temperature of medium-5 °C … 50 °C
• Pilot mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Ambient temperature-5 °C … 50 °C
• Product weight390 g
• Electrical connectionForm C
• Type of mountingWith through-hole
• Pilot exhaust air port 82M5
• Pilot exhaust air port 84M5
• Pilot air port 12M5
• Pilot air port 14M5
• Pneumatic connection 1G3/8
• Pneumatic connection 2G3/8
• Pneumatic connection 3G3/8
• Pneumatic connection 4G3/8
• Pneumatic connection 5G3/8
• Note on materialsRoHS-compliant
• Seals materialNBR
• Housing materialDie-cast aluminum
