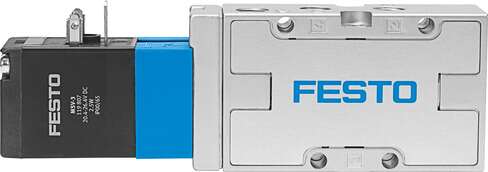

| Valve function | 5/3, closed |
| Actuation type | Electrical |
| Width | 40 mm |
| Standard nominal flow rate | 2200 l/min |
| Pneumatic working port | G3/8 |
| Operating pressure | 0.3 MPa … 1 MPa |
| Operating pressure | 3 bar … 10 bar |
| Structural design | Piston gate valve |
| Reset method | Mechanical spring |
| Nominal width | 12 mm |
| Width dimension | 41 mm |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Non-detenting |
| Type of control | Pilot-controlled |
| Pilot air supply port | Internal |
| Flow direction | Non-reversible |

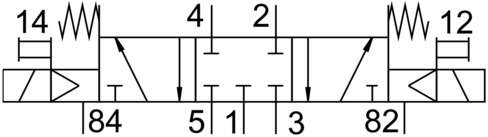

| Symbol | 00991033 |
| Lap | Overlap |
| Max. switching frequency | 3 Hz |
| Switching time off | 80 ms |
| On switching time | 24 ms |
| Max. positive test pulse with 0 signal | 2200 µs |
| Max. negative test pulse on 1 signal | 3700 µs |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Storage temperature | -40 °C … 60 °C |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -5 °C … 40 °C |
| Product weight | 780 g |
| Electrical connection | Via F coil, to be ordered separately |
| Type of mounting | On PR railWith through-holeOptionally: |
| Pilot exhaust air port 82 | M5 |
| Pilot exhaust air port 84 | M5 |
| Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 |
| Pneumatic connection 3 | G3/8 |
| Pneumatic connection 4 | G3/8 |
| Pneumatic connection 5 | G3/8 |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Housing material | Die-cast aluminum |
