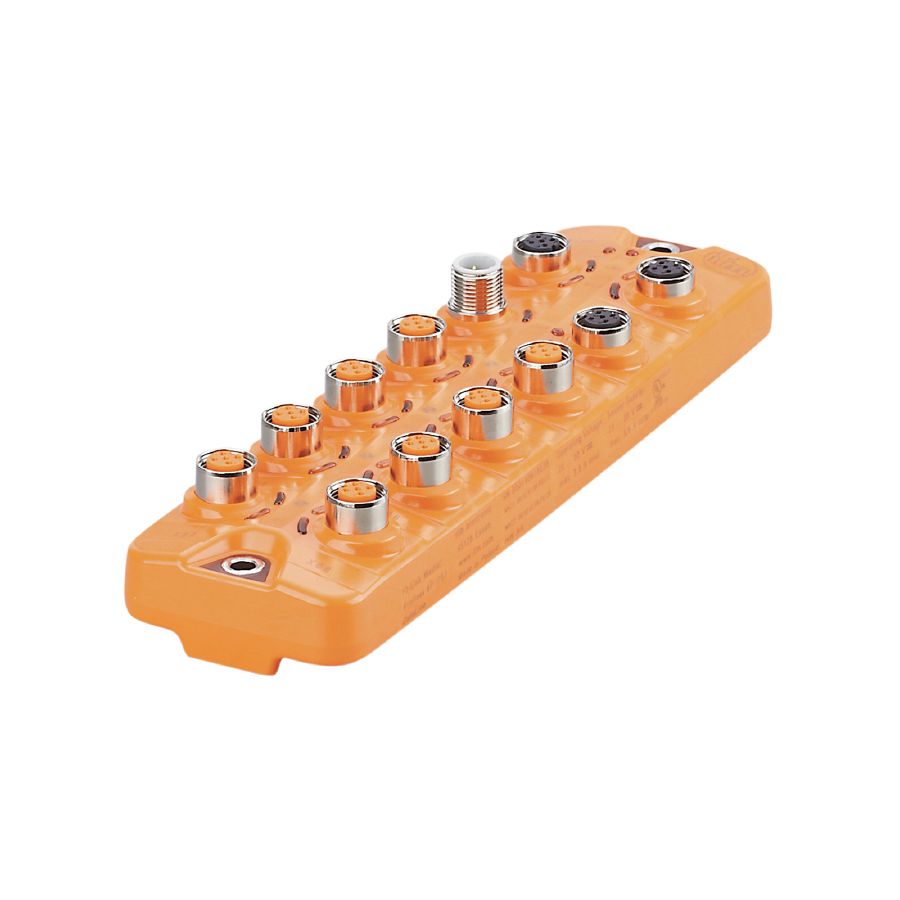

AL1306

AL1306 - Image 2

AL1306

Separation between automation network and IT network
For connection of up to eight IO-Link devices
Reliable transmission of machine data, process parameters and diagnostic data to the controller
With ProfiNet interface and separate MQTT JSON interface
Robust housing for use in harsh industrial environments

SKU: AL1306

$385,20

Description

Application

Application	I/O modules for field applications
Daisy-chain function	fieldbus interface

Electrical data

Operating voltage [V]	20…30 DC; (US ; to SELV/PELV)
Current consumption [mA]	300…3900; (US)
Protection class	III

Sensor supply US

Max. current load total [A]	3.6

Inputs / outputs

Total number of inputs and outputs	16; (configurable)
Number of inputs and outputs	Number of digital inputs: 16; Number of digital outputs: 8

Inputs

Number of digital inputs	16; (IO-Link Port Class A: 8 x 2)
Switching level high [V]	11…30
Switching level low [V]	0…5
Digital inputs protected against short circuits	yes

Outputs

Number of digital outputs	8; (IO-Link Port Class A: 8 x 1)
Max. current load per output [mA]	300
Short-circuit proof	yes

Interfaces

Communication interface	Ethernet; IO-Link

Ethernet – PROFINET

Transmission standard

100Base-TX

Transmission rate

100 MBit/s

Protocol

PROFINET

Factory settings

IP address: 0.0.0.0

subnet mask: 0.0.0.0

gateway IP address: 0.0.0.0

MAC address: see type label

Note on interfaces

IO-Link Integration Edition 2

CC-C (Conformance Class C) (IRT-Switch)

S2 redundancy

Netload Class III

CiR (Configuration in Run)

SNMP (Simple Network Management Protocol)

MRP (Media Redundancy Protocol)

Supported network topologies: line

ring

Ethernet – Internet of Things

Transmission standard

10Base-T; 100Base-TX

Transmission rate

10 MBit/s; 100 MBit/s

Protocol

MQTT JSON

Factory settings

IP address: 169.254.x.x

subnet mask: 255.255.0.0

gateway IP address: 0.0.0.0

MAC address: see type label

Note on interfaces

Secure protocol: HTTPS

IO-Link Master

Transmission type	COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)
IO-Link revision	1.1
Number of ports class A	8

Operating conditions

Ambient temperature [°C]

-25…60

Storage temperature [°C]

-25…85

Max. relative air humidity [%]

90

Protection

IP 65; IP 66; IP 67

Protection rating (NEMA 250)

6P

Pollution degree

2

Chemical media

ISO 16750-5	AA, BA, BD, HLP, CC, DB, DC, DD, CA
NEMA 250 5.13.1	AA

Tests / approvals

EMC

EN 61000-6-2
EN 61000-6-4

Shock resistance

DIN EN 60068-2-27

Vibration resistance

DIN EN 60068-2-64 2009-04
DIN EN 60068-2-6 2008-10

MTTF [years]

76

Mechanical data

Weight [g]	411.4
Materials	housing: PA orange; socket: brass nickel-plated
Sealing material	FKM

Remarks

Remarks

For further information please see the operating instructions.

Pack quantity

1 pcs.

Electrical connection – Ethernet

PROFINET X21, X22	Connector: M12; coding: D; Sealing: FKM

Electrical connection – Process connection

IO-Link Port Class A X01…X08	Connector: M12; coding: A; Sealing: FKM

Electrical connection – power supply

X31	Connector: M12; coding: A
