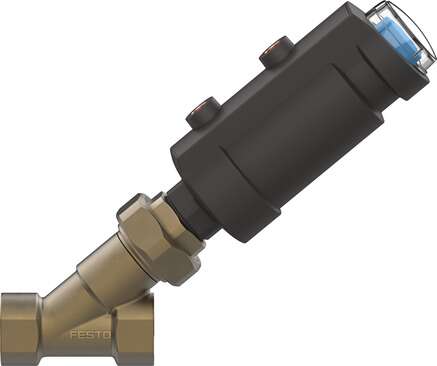

| Structural design | Poppet valve with piston actuator |
| Actuation type | Pneumatic |
| Mounting position | Any |
| Type of mounting | Line installation |
| Cable connection | Threaded sleeve 1/2 NPT as per ANSI/ASME B 1.20.1 |
| Valve function | 2/2 |
| Flow direction | Non-reversible |
| Medium pressure | 0 MPa … 1.6 MPa |
| Medium pressure | 0 bar … 16 bar |
| Reset method | Mechanical spring |
| Type of control | Externally controlled |
| Pneumatic connection | Internal thread G1/8 |
| Operating pressure | 0.5 MPa … 0.7 MPa |
| Operating pressure | 5 bar … 7 bar |
| Operating pressure | 72.5 psi … 101.5 psi |

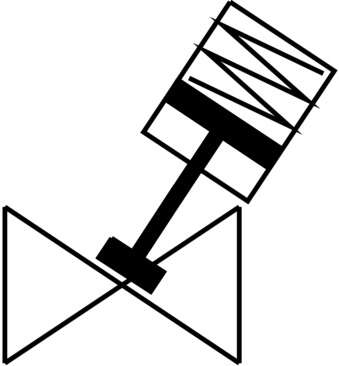

| Symbol | 00995586 |
| Medium | VaporInert gasFiltered compressed air, 200 µm filter mesh |
| Flow direction | Above valve seat, for gaseous media |
| Control of the medium | On/off mode |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Max. viscosity | 600 mm²/s |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | 0 °C … 60 °C |
| Flow rate Kv | 4.9 m³/h |
| Use in exterior area | Weather-protected locations class C1 based on IEC 60654-1 |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Valve housing material | Brass |
| Material number, fitting housing | CW724R |
| Seals material | FPM |
| Spindle seal material | PTFE |
| Seat seal material | PTFE |
| Product weight | 1096 g |
| Actuator size | 46 mm |
| Stroke | 17 mm |
| Control function | Closed by reduced spring force, NC |
| Position sensing | With mechanical indicator |
| Drive housing material | PA-reinforced |
| Storage temperature | -10 °C … 60 °C |
| Degree of protection | IP65IP67 |
| Piston rod material | High-alloy stainless steel |
| Cover material | PA-reinforced |
