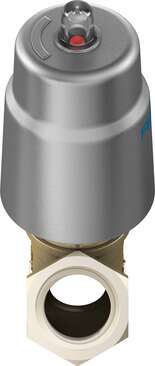

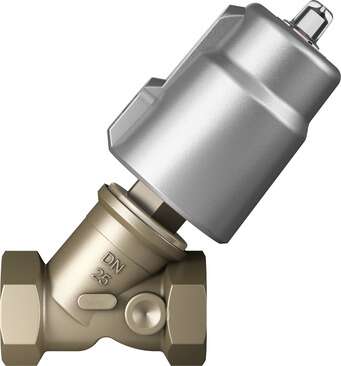

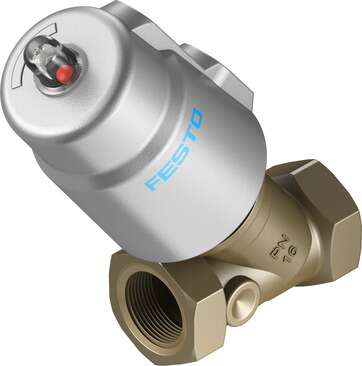

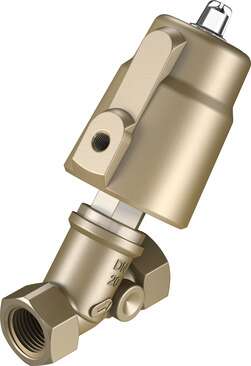

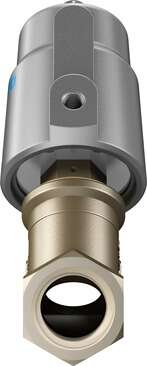

| Structural design | Poppet valve with piston actuator |
| Actuation type | Pneumatic |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Cable connection | Threaded sleeve G1 as per DIN ISO 228 |
| Nominal width | 23 mm |
| Valve function | 2/2, closed, monostable |
| Flow direction | Non-reversible |
| Medium pressure | 0 MPa … 1.6 MPa |
| Medium pressure | 0 bar … 16 bar |
| Nominal pressure of fitting PN | 16 |
| Exhaust air function | Without flow control option |
| Reset method | Mechanical spring |
| Type of control | Externally controlled |
| Pneumatic connection | Internal thread G1/8 |
| Operating pressure | 0.6 MPa … 1 MPa |
| Operating pressure | 6 bar … 10 bar |
| Operating pressure | 87 psi … 145 psi |
| Symbol | 00991367 |
| Medium | VaporHydraulic fluid based on mineral oilInert gasMineral oilWaterFiltered compressed air, 200 µm filter meshNeutral liquids |
| Flow direction | Under valve seat, for gaseous and liquid media |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Max. viscosity | 600 mm²/s |
| Temperature of medium | -40 °C … 200 °C |
| Ambient temperature | -10 °C … 60 °C |
| Flow rate Kv | 14.5 m³/h |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Valve housing material | Red brass |
| Material number, fitting housing | CC499K |
| Spindle seal material | PTFE |
| Seat seal material | PTFE |
| Product weight | 2000 g |
| Corrosion resistance class (CRC) | 0 – No corrosion stress |
| Drive housing material | Aluminum |
