| Structural design | Poppet valve with piston actuator |
| Actuation type | Pneumatic |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Cable connection | Threaded sleeve G1 1/2 as per DIN ISO 228 |
| Nominal width | 35 mm |
| Valve function | 2/2, closed, monostable |
| Flow direction | Non-reversible |
| Medium pressure | -0.09 MPa … 0 MPa |
| Medium pressure | -0.9 bar … 0 bar |
| Nominal pressure of fitting PN | 40 |
| Exhaust air function | Without flow control option |
| Reset method | Mechanical spring |
| Type of control | Externally controlled |
| Pneumatic connection | Internal thread G1/8 |
| Operating pressure | 0.6 MPa … 1 MPa |
| Operating pressure | 6 bar … 10 bar |
| Operating pressure | 87 psi … 145 psi |

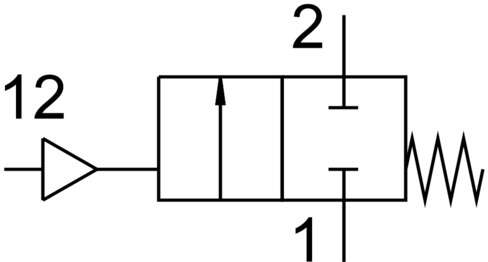

| Symbol | 00991367 |
| Medium | VaporInert gasFiltered compressed air, 200 µm filter mesh |
| Flow direction | Above valve seat, for gaseous media |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Max. viscosity | 600 mm²/s |
| Temperature of medium | -10 °C … 80 °C |
| Ambient temperature | -10 °C … 60 °C |
| Flow rate Kv | 29 m³/h |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Valve housing material | Cast stainless steel |
| Material number, fitting housing | 1.4408 |
| Spindle seal material | FPM |
| Seat seal material | FPM |
| Product weight | 4300 g |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Drive housing material | Aluminum, nickel plated |
