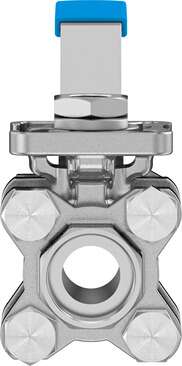

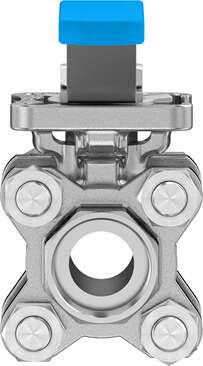

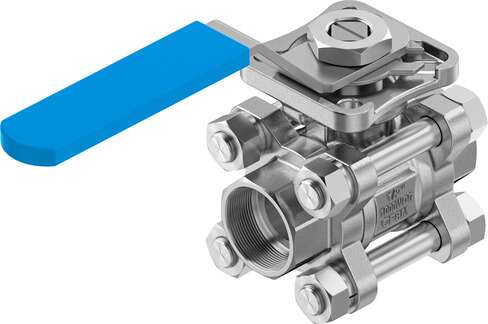

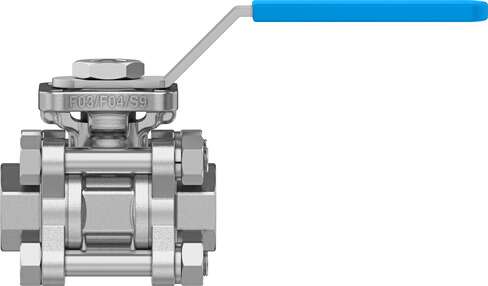

| Structural design | 2-way ball valve with hand lever |
| Actuation type | Mechanical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | Weld-on end according to ASME B16.11 |
| Switching position indication | Slot direction = flow direction |
| Flange hole pattern | F03F04 |
| Inside diameter | 15 mm |
| Nominal width DN | 15 |
| Valve function | 2/2 |
| Flow direction | Reversible |
| Nominal pressure of fitting PN | 63 |
| Breakaway torque at differential pressure, nominal pressure, fitting PN | 7 Nm |
| Based on norm | ASME B16.11ISO 5211 |
| Symbol | 00991458 |
| Medium | VaporCompressed air as per ISO 8573-1:2010 [-:-:-]Inert gasWaterNeutral liquids |
| Temperature of medium | -20 °C … 200 °C |
| Flow rate Kv | 32 m³/h |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | Cast stainless steel |
| Material number of housing | 1.4408/CF8M |
| Seat seal material | PTFE, modified |
| Seals material | FPMPTFE |
| Ball material | Cast stainless steel |
| Material number for ball | 1.4408/CF8M |
| Shaft material | High-alloy stainless steel |
| Material number for shaft | 1.4401 |
| Product weight | 600 g |
| Certification | CRN |
| Explosion prevention and protection | Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Corrosion resistance class (CRC) | 4 – Particularly high corrosion stress |
