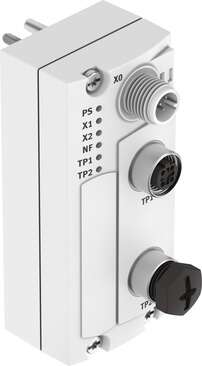

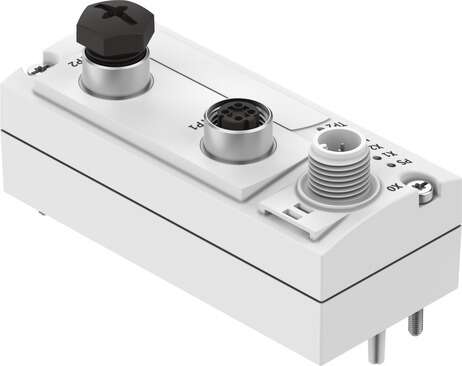

| Dimensions W x L x H | 40 mm x 91 mm x 50 mm |
| Width dimension | 40 mm |
| Type of mounting | On electrical interfaceOn electrical sub-base |
| Product weight | 93 g |
| Protocol | PROFINET |
| Fieldbus interface, type | Ethernet |
| Fieldbus interface, protocol | PROFINET RT |
| Fieldbus interface, function | Bus connection, incoming/forwarding |
| Fieldbus interface, connection type | 2x socket |
| Fieldbus interface, connection technology | M12x1, D-coded as per EN 61076-2-101 |
| Fieldbus interface, number of poles/wires | 4 |
| Fieldbus interface, connection pattern | 00995716 |
| Fieldbus interface, galvanic isolation | yes |
| Fieldbus interface, transmission rate | 100 Mbit/s |
| Internal cycle time | 1 ms per 1 byte of user data |
| Max. address capacity inputs | 64 byte |
| Max. address capacity outputs | 64 byte |
| Power supply, function | Electronics and load |
| Power supply, type of connection | Plug |
| Power supply, connection technology | M12x1, A-coded as per EN 61076-2-101 |
| Power supply, number of pins/wires | 5 |
| Power supply, connection pattern | 00995383 |
| Diagnostics | Communication errorSystem diagnosticsUndervoltage |
| Additional functions | Conformance class CFast start-up (FSU)LLDPMRPPROFINET IRTPROFIenergySNMPShared deviceWeb server |
| Configuration support | GSDML file |
| LED display (product-specific) | PS: operating voltage for electronics and load supplyX1: module system status at I-Port 1X2: module system status at I-Port 2 |
| LED display (bus-specific) | NF: network faultTP1: network active port 1TP2: network active, port 2 |
| DC operating voltage range | 18 V … 30 V |
| Nominal operating voltage DC | 24 V |
| Intrinsic current consumption at nominal operating voltage | Typ. 80 mA |
| Max. power supply | 4 A |
| Certification | RCM compliance mark |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMCTo UK RoHS instructions |
| Storage temperature | -20 °C … 70 °C |
| Degree of protection | IP65IP67 |
| Note on degree of protection | In mounted stateUnused connections sealed |
| Ambient temperature | -5 °C … 50 °C |
| Housing material | PA |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
