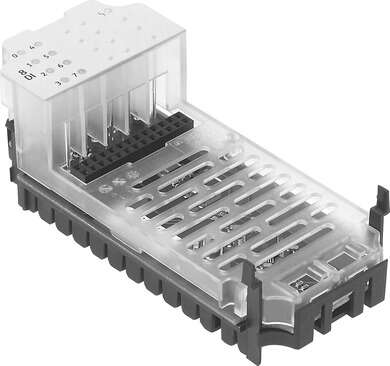

| Dimensions W x L x H | (incl. interlinking block)50 mm x 107 mm x 50 mm |
| Fieldbus interface | 2x socket, M12x1, 4-pin, D-coded |
| Device-specific diagnostics | Channel-oriented and module-oriented diagnosticsUndervoltage of modulesDiagnostic memory |
| Parameterization | Diagnostic behaviorFail-safe responseforcing of channelsSignal setupSystem parameter |
| Configuration support | ESI file |
| Additional functions | Acyclic data access via fieldbusDiagnostic objectEmergency messageCompatibility mode with FB38Modular Device Profile (MDP)System status can be indicated via process dataVariable PDO mappingAdditional diagnostic interface for operator units |
| Control elements | DIL switch |
| Baud rate | 100 Mbit/s |
| DC operating voltage range | 18 V … 30 V |
| Intrinsic current consumption at nominal operating voltage | Typ. 100 mA |
| Nominal operating voltage DC | 24 V |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Storage temperature | -20 °C … 70 °C |
| Degree of protection | IP65IP67 |
| Ambient temperature | -5 °C … 50 °C |
| Product weight | 125 g |
| Max. address capacity outputs | 128 byte |
| Max. address capacity inputs | 128 byte |
| Protocol | EtherCAT |
| LED display (bus-specific) | Error: communication errorLA X1: network active, port 1LA X2: network active, port 2Run: communication status |
| LED display (product-specific) | M: Modify, parameterizationPL: load supplyPS: electronics supply, sensor supplySF: system fault |
| Note on materials | RoHS-compliant |
| Housing material | PA-reinforced |
