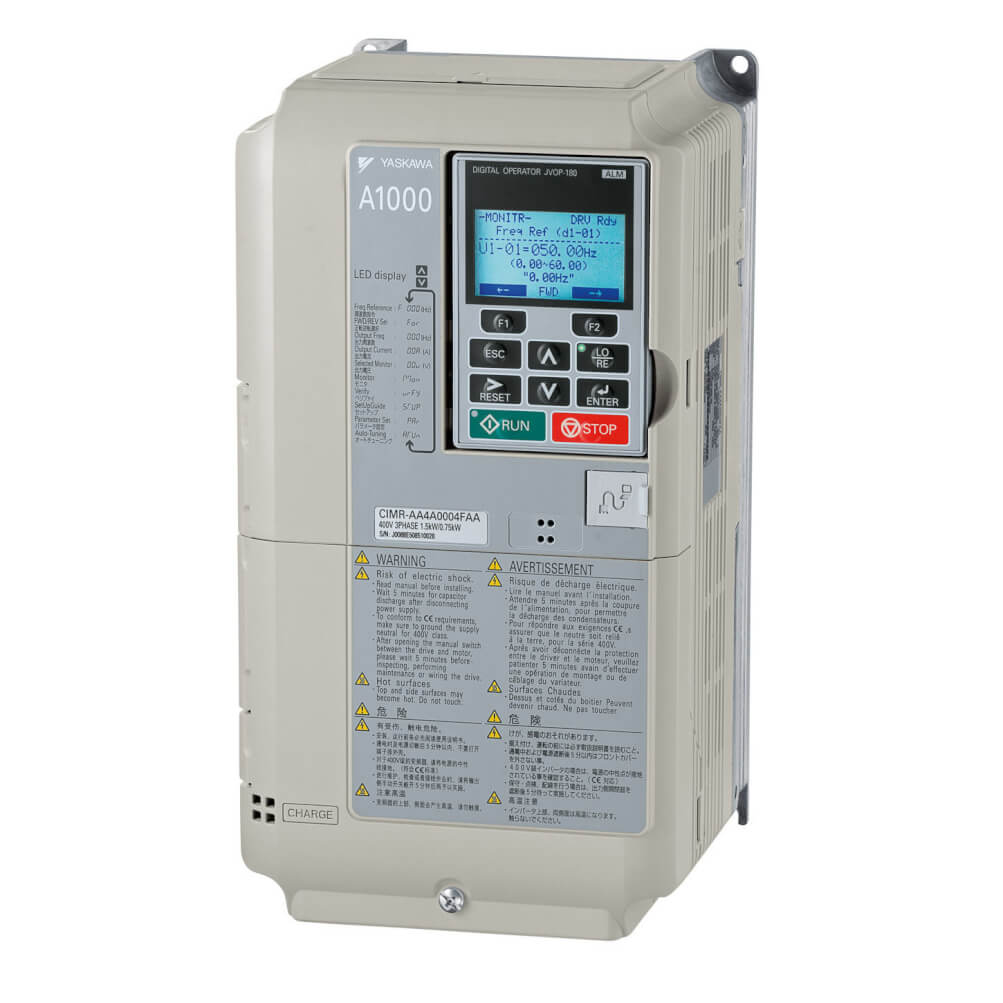

A1000 inverter: 3~ 400 V, HD: 4 kW 9.2 A, ND: 5.5 kW 11.1 A, max. output freq. 400Hz
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector |
| Drive supply voltage | 400 V three phase |
| Max. motor output at constant torque (HD) | 4 kW |
| Max. motor output at variable torque (ND) | 5.5 kW |
| Built in EMC filter | ❌ |
| Degree of protection (IP) | IP20 |
| Finless type | ❌ |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | MODBUS Slave, Serial RS-422, Serial RS-485 |
| Communication option(s) | CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave |
| Product Height (unpacked) | 260 mm |
| Product Width (unpacked) | 140 mm |
| Product Depth (unpacked) | 164 mm |
| Product Weight (unpacked) | 3500 g |
 |
A1000-CAVPC232-EE | PC connection cable. RS232 PC tool connection cable. |
|
 |
JVOP-180 | LCD remote operator |
|
 |
JVOP-181 | USB converter unit with copy and backup function |
|
 |
PG-B3 | Open collector PG interface for A1000 and Q2A inverters. A, B, Z pulse, fmax 50 kHz |
|
 |
PG-F3 | Endat PG interface for A1000 and Q2A inverters. For speed feedback input by connection a motor encoder type: EnDat 2.1/01, EnDat 2.2/01, EnDat 2.2/22 (HEIDENHAIN) |
|
| PG-RT3 | Resolver PG interface card A1000 and Q2A inverters. TS2640N321E64 |
|
|
 |
PG-X3 | Line Driver PG interface for A1000 and Q2A inverters. A, B, Z differential (RS422) input, fmax 300 kHz |
|
| SI-EL3 | POWERLINK option board for A1000, Q2A and Q2V. |
|
|
| SI-EM3 | Modbus TCP/IP option board for A1000 inverter. |
|
|
| SI-EM3D | Dual Port Modbus TCP/IP option board for A1000 inverter. |
|
|
| SI-EN3 | EtherNet/IP option board for A1000, Q2A and Q2V inverters. |
|
|
| SI-EN3D | Dual Port EtherNet IP option board for A1000, Q2A and Q2V inverters. |
|
|
| SI-EP3 | PROFINET option board for A1000, Q2A and Q2V inverters. |
|
|
| SI-ES3 | EtherCAT option board for A1000, Q2A and Q2V inverters. |
|
|
 |
SI-N3 | DeviceNet option board for A1000, Q2A and Q2V inverters. |
|
 |
SI-P3 | PROFIBUS DP option board for A1000, Q2A and Q2V inverters. |
|
| SI-S3 | CANopen option board for A1000, Q2A and Q2V inverters. |
|
Datasheet
EN PDF
