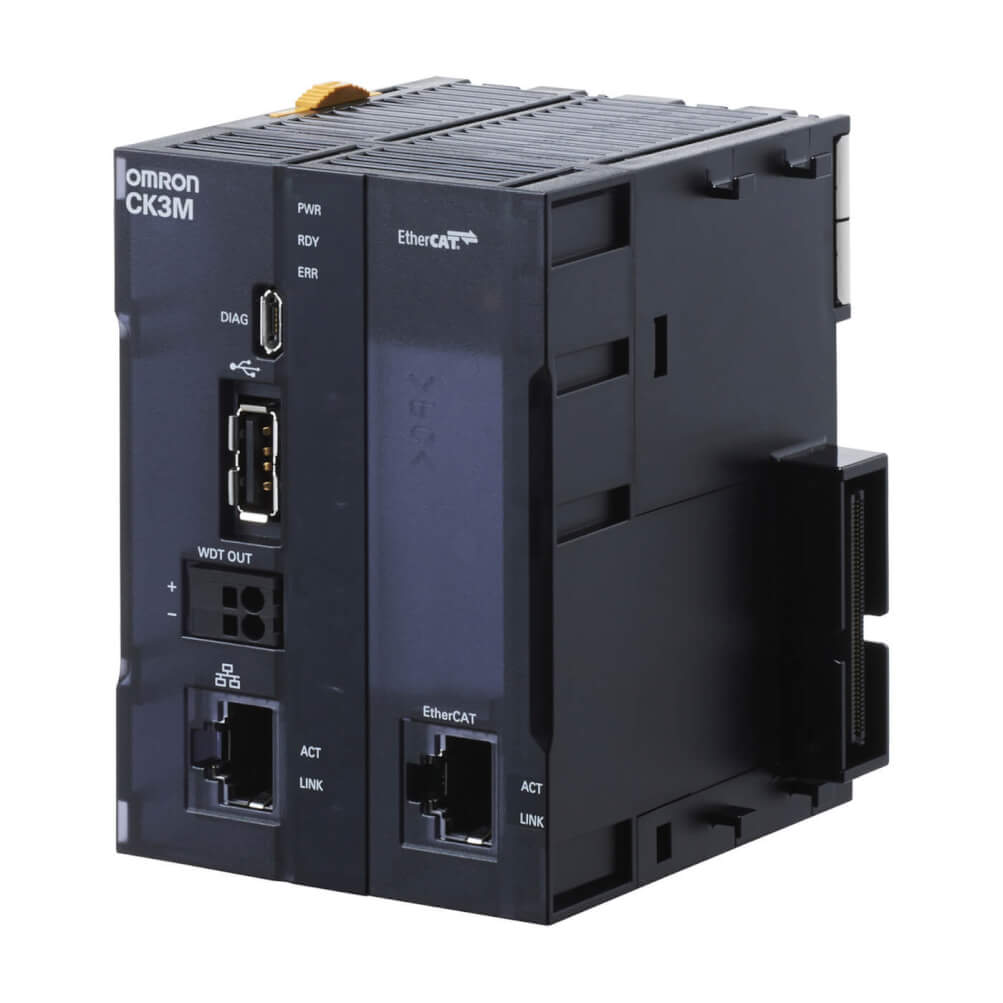

CK3M CPU, 1 GB RAM, 1 GB Flash, 4 EtherCAT axes. Up to two axis interface units can be connected. Expansion units can be connected.
| Type of module | Motion control |
| Max. number of axes via EtherCAT | 4 |
| Number of digital inputs | 0 |
| Number of digital outputs | 0 |
| Number of analog inputs | 0 |
| Max. number of axis interface units | 4 |
| Communication port(s) | EtherCAT Master, EtherCAT Slave, Ethernet TCP/IP, USB |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 63.2 mm |
| Product Depth (unpacked) | 80 mm |
 |
CK3W-PD048 | CK3W Power Supply Unit for CK[]M-CPU1[]1, 5 VDC / 24 VDC, max current 8 A (5 VDC) |
|
 |
GX-JC03 | 3-port EtherCAT Junction module, 24 VDC power supply |
|
 |
GX-JC06 | 6-port EtherCAT Junction module, 24 VDC power supply |
|
