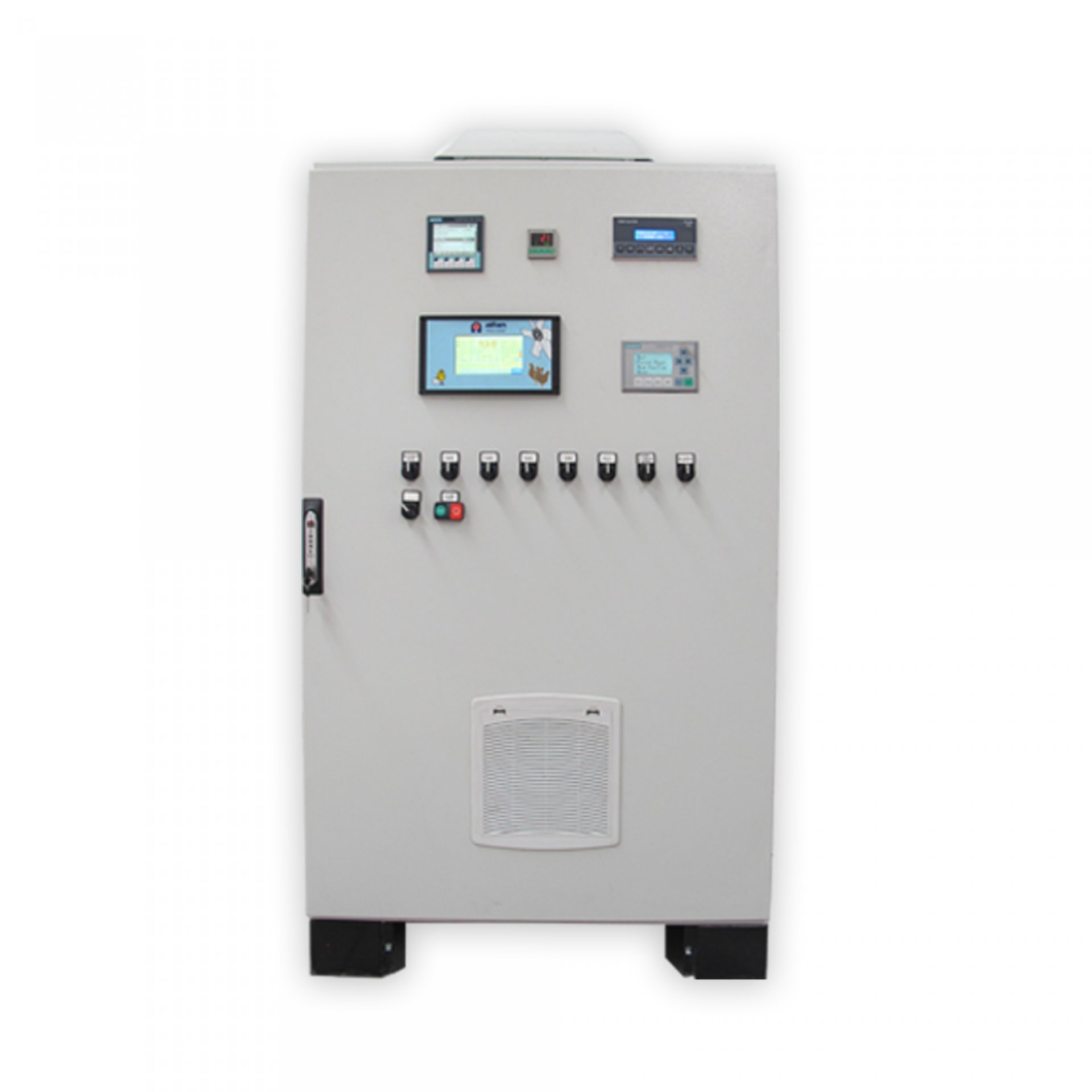

Control System

Description

TECHNICAL PROPERTIES

SENSOR INPUTS

• 4 internal temperature sensor
• 1 internal temperature sensor
• 1 humidity sensor
• 1 carbon dioxide sensor
• 1 water counter

CONTROL OUTPUTS

• 12 fan output, fans can be selected, minimum, transitive or tunnel ventilation output
• Heater output
• 2 level pump output with cooling pads
• Valve controlled output
• Pad valve controlled output
• 2 lighting output
• Alarm output

CONTROL PROPERTIES

• Easy installation with coloured touchpad
• Minimum ventilation with daily program depending on number of animals, fan capacity and daily needs
• Ventilation according to outer temperature and humidity.
• Three different ventilation index (minimum, transitive, tunnel)
• Failure logging of past data with reporting
• Recording heat, humidity, water and heater working periods for past data
• Controlling pad motor according to temperature, humidity and time.
• Proportional screen control according to need
• Ventilation with sensor 1, 2, 3, 4 or using the average of the sensors
• Two different lighting program output
• Easy installation with user specific parameter record
• Sending message to cell-phone (optional additional hardware)
• Internet based tracing with remote computer link (optional additional hardware)

ALARM TYPES

High temperature, Low temperature, High humidity, Low humidity, High pressure, Low pressure, Electricity cut, Sensor 1, 2, 3, 4 fault, Outer heat sensor fault, Humidity sensor fault, Pressure sensor fault, Fault input form separate panel (Digital input 0 or 1)
