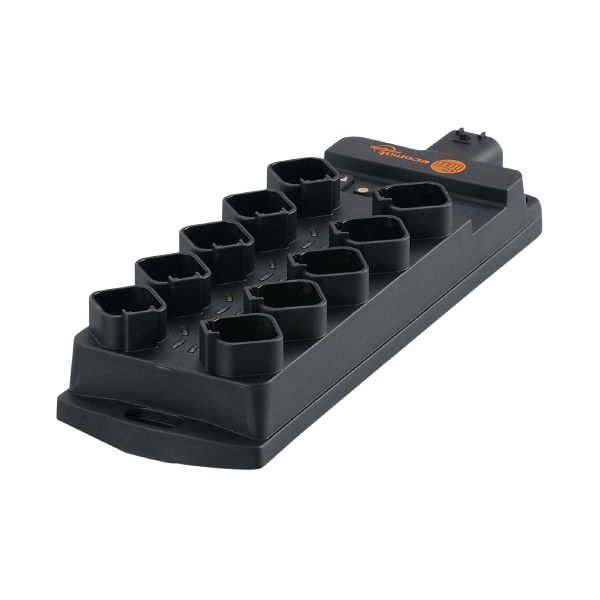

Electrical data
| Operating voltage [V] |
8…32 DC |
| Reverse polarity protection |
yes |
Inputs / outputs
| Total number of inputs and outputs |
16 |
| Number of inputs and outputs |
Number of digital inputs: 16; Number of analogue inputs: 8; Number of frequency inputs: 4; Number of resistor inputs: 4 |
Inputs
| Total number of inputs |
16 |
| Number of frequency inputs |
4 |
| Number of resistor inputs |
4 |
| Number of digital inputs |
16 |
| Number of analogue inputs |
8 |
| Analogue input (current) [mA] |
0…20 |
| Analogue input (voltage) [V] |
0…32 |
Outputs
| Short-circuit protection |
yes |
Software / programming
| PLC function to IEC 61131-3 |
yes |
Interfaces
| Number of CAN interfaces |
2 |
Operating conditions
| Ambient temperature [°C] |
-40…85 |
| Storage temperature [°C] |
-40…85 |
| Protection |
IP 65; IP 67 |
Tests / approvals
| EMC |
| DIN EN 61000-6-2 |
|
| DIN EN 61000-6-4 |
|
|
| MTTF [years] |
100 |
Mechanical data
| Weight [g] |
692 |
| Type of mounting |
mounting via screws |
| Dimensions [mm] |
234.2 x 76 x 40.5 |
| Materials |
PA glass fibre reinforced |
Displays / operating elements
| Display |
|
10-segment LED display, red/green 4-digit |
|
Electrical connection – CAN interface 2
| CAN IN |
Connector: 2 x DEUTSCH connector |
Electrical connection – Inputs
| Con. 1…8 |
Connector: 8 x DEUTSCH connector |
Electrical connection – supply / CAN interface 1
| X1 |
Connector: 1 x AMP connector |
