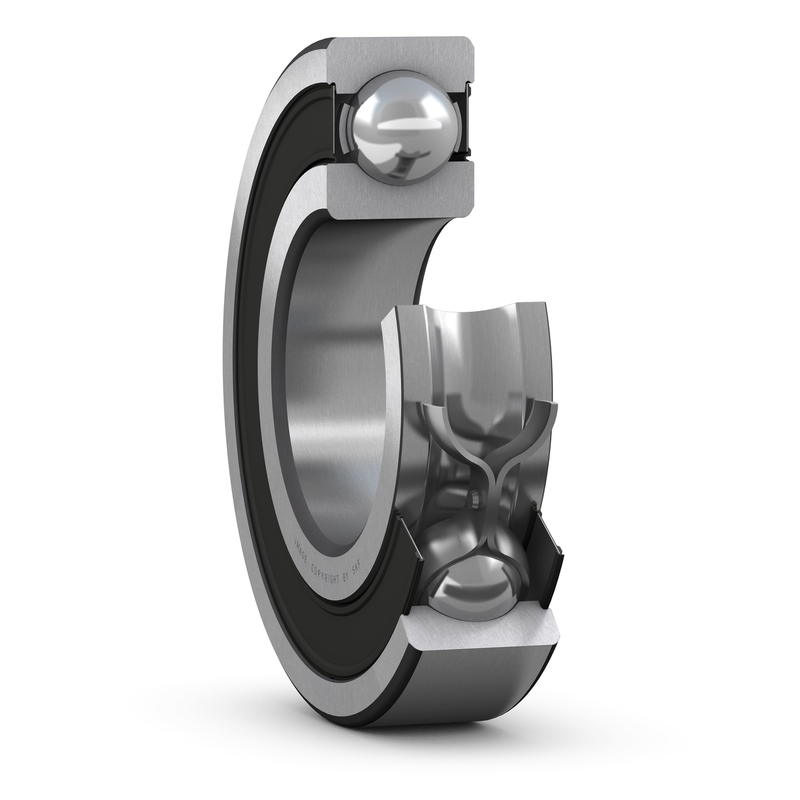

Stainless steel single row deep groove ball bearings with flanged outer ring and seals or shields on both sides provide greater chemical and corrosion resistance. As with deep groove ball bearings generally, they are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The flanged outer ring facilitates axial location of the bearings within their housings. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
| d |
7.938 mm
|
Bore diameter |
|---|---|---|
| D |
12.7 mm
|
Outside diameter |
| B |
3.967 mm
|
Width |
| d2 |
≈ 9 mm
|
Recess diameter |
| D2 |
≈ 11.55 mm
|
Recess diameter |
| D3 |
13.894 mm
|
Flange diameter |
| C |
0.787 mm
|
Flange width |
| r1,2 |
min. 0.15 mm
|
Chamfer dimension |
| da |
min. 8.9 mm
|
Diameter of shaft abutment |
|---|---|---|
| da |
max. 8.9 mm
|
Diameter of shaft abutment |
| ra |
max. 0.15 mm
|
Radius of shaft or housing fillet |
| Basic dynamic load rating | C |
0.312 kN
|
|---|---|---|
| Basic static load rating | C0 |
0.143 kN
|
| Fatigue load limit | Pu |
0.006 kN
|
| Reference speed |
100 000 r/min
|
|
| Limiting speed |
50 000 r/min
|
|
| Minimum load factor | kr |
0.015
|
| Calculation factor | f0 |
8.3
|
| Mass bearing |
0.0016 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
Normal
|
