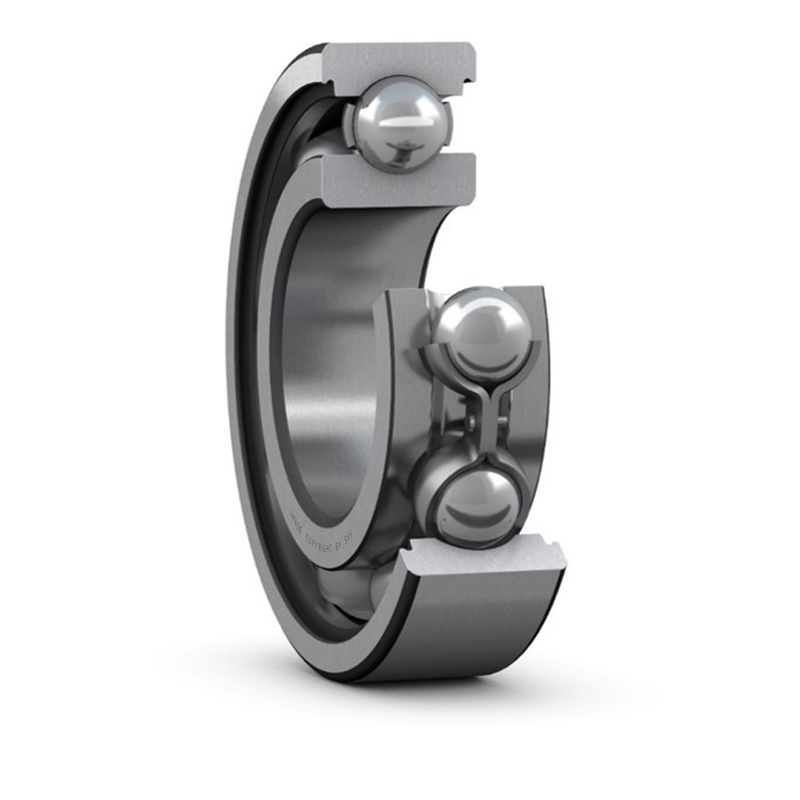

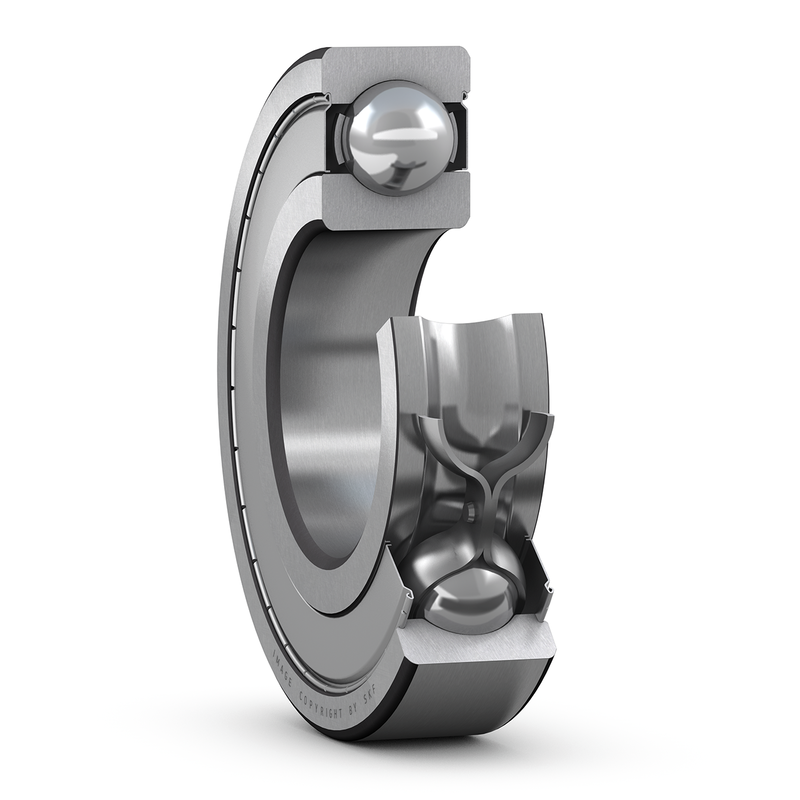

Single row deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They can accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
| d |
6.35 mm
|
Bore diameter |
|---|---|---|
| D |
15.875 mm
|
Outside diameter |
| B |
4.978 mm
|
Width |
| d2 |
≈ 8.4 mm
|
Recess diameter |
| D2 |
≈ 13.8 mm
|
Recess diameter |
| D3 |
17.526 mm
|
Flange diameter |
| C |
1.067 mm
|
Flange width |
| r1,2 |
min. 0.3 mm
|
Chamfer dimension |
| da |
min. 8 mm
|
Diameter of shaft abutment |
|---|---|---|
| ra |
max. 0.3 mm
|
Radius of shaft or housing fillet |
| Basic dynamic load rating | C |
0.852 kN
|
|---|---|---|
| Basic static load rating | C0 |
0.315 kN
|
| Fatigue load limit | Pu |
0.014 kN
|
| Reference speed |
95 000 r/min
|
|
| Limiting speed |
60 000 r/min
|
|
| Minimum load factor | kr |
0.02
|
| Calculation factor | f0 |
7.1
|
| Mass bearing |
0.0042 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
Normal
|
