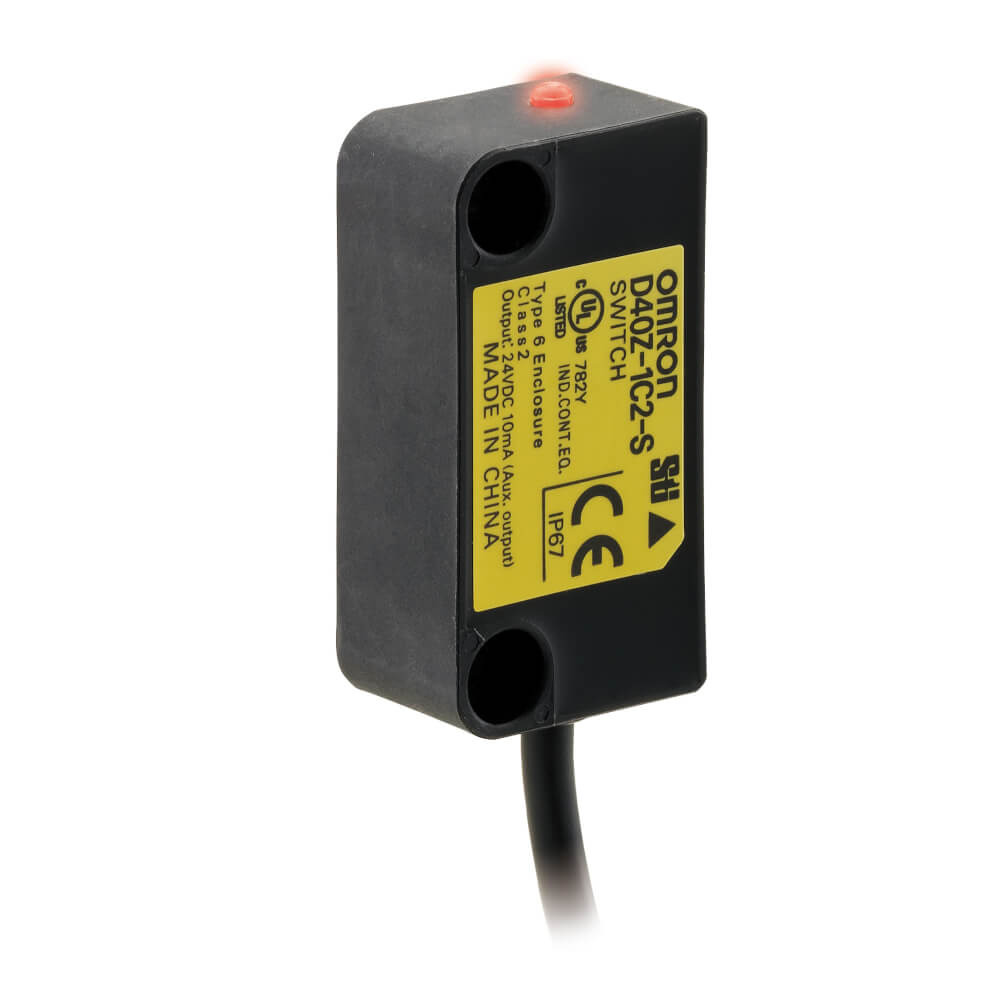

D40Z-1C5-S

Safety non-contact door switch, Cat 4/Ple, 5m cable, switch only



SKU: D40Z-1C5-S
ID:1588745

Description

Switch without actuator
Min. operating distance OFF to ON 5 mm
Max. operating distance ON to OFF 15 mm
Max. differential travel 20 %
Ambient temperature (operating) -10-65 °C
Vibration resistance 10 to 55 to 10 Hz (single amplitude: 0.75 mm, double amplitude: 1.5 mm)
Min. shock resistance 300 m/s²
Degree of protection (IP) IP67
Material housing PBT
Mounting method M4 screws
Max. power consumption 0.5 W
Auxiliary monitoring output Photocoupler output: 24 V DC, load current: 10 mA
LED indicators Actuator detected (yellow), Actuator not detected (red)
Cable length 5 m
Number of connectable switches 30 max. (wiring length: 100 m max.)



Accessories

D40Z-1C-A Safety non-contact door switch, Cat 4/Ple, actuator only





CSM_D40Z_C145-E1_8_4

Datasheet
EN PDF
