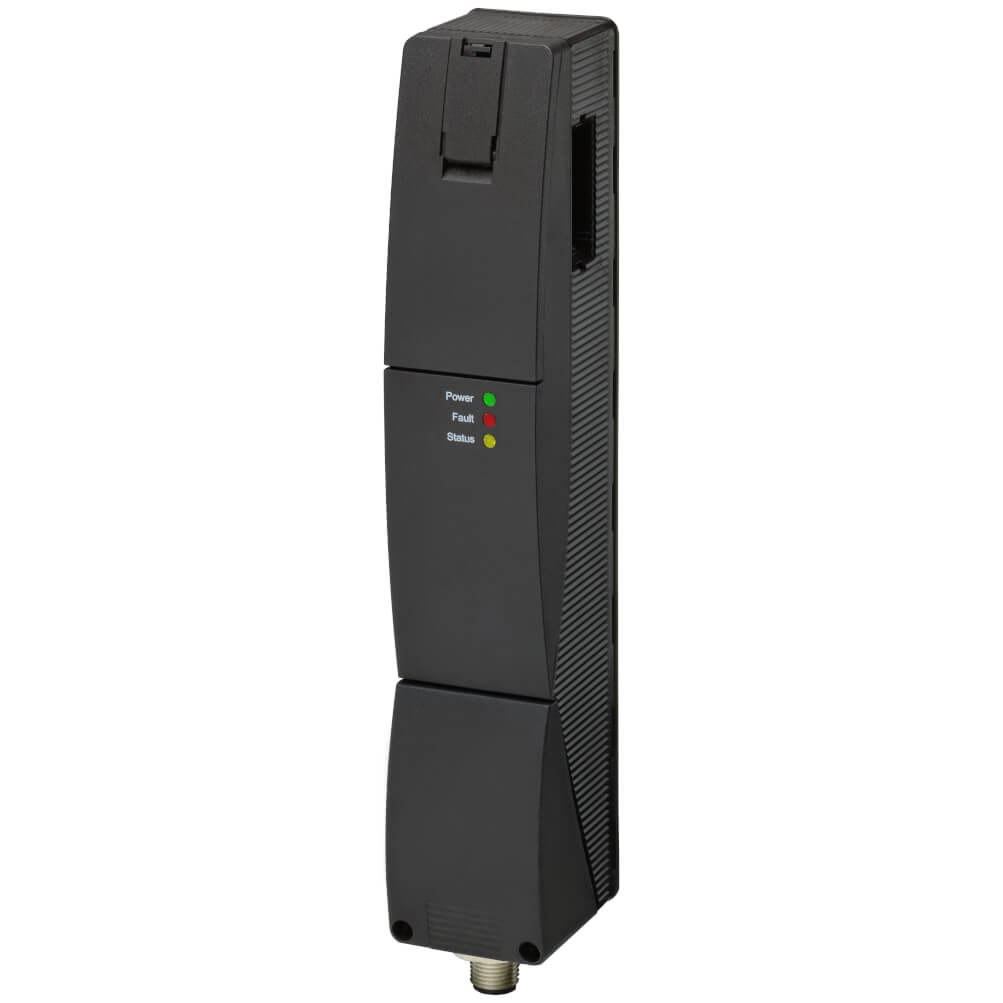

D41G-2YDA-N2

Guard locking Switch, RFID High-coded, Solenoid monitoring, Power to unlock, PNP, Test Pulse, Connector plug M12, 8-pole, re-teaching enabled

SKU: D41G-2YDA-N2
ID:1588569

Description

Coding Unique
Connection method Connector M12 – 8 pin
Degree of protection (IP) IP66/IP67
Diagnostic LED ✔️
Door contacts NC 2
Door contacts NO 1
Door switch type RFID magnetic
Guard-lock ✔️
High coding level ✔️
LED indicator ✔️
Lock/Release key type Standard key
Material housing PBT
Number of auxiliary outputs 1
Number of safety inputs 2
Output test pulses ✔️
Output type PNP
Solenoid voltage 24 V
Teaching limitation
OSSD configuration Guard monitoring AND lock monitoring
Lock/Release logic Power to lock (Solenoid lock)



Accessories

D41G-A1L Actuator for D41G, compact, left-hand side, without emergency exit



D41G-A1L-E0 Actuator for D41G, compact, left-hand side, with emergency exit



D41G-A1R Actuator for D41G, compact, right-hand side, without emergency exit



D41G-A1R-E0 Actuator for D41G, compact, right-hand side, with emergency exit



D41G-A2L Actuator for D41G, with door handle, left-hand side, without emergency exit



D41G-A2L-E1 Actuator for D41G, with door handle, left-hand side, with emergency exit



D41G-A2L-E1T Actuator for D41G, with door handle, left-hand side, with emergency exit, with lockout tag



D41G-A2R Actuator for D41G, with door handle, right-hand side, without emergency exit



D41G-A2R-E1 Actuator for D41G, with door handle, right-hand side, with emergency exit



D41G-A2R-E1T Actuator for D41G, with door handle, left-hand side, with emergency exit, with lockout tag



D41L-8P5-CFM12-905M Female cable connector for D41L, straight, screw type M12, 8 poles, PUR, cable length 5 m



D41L-8P5-CFM12-910M Female cable connector for D41L, straight, screw type M12, 8 poles, PUR, cable length 10 m





CSM_D41G_F114-E1_3_1

Datasheet
EN PDF
