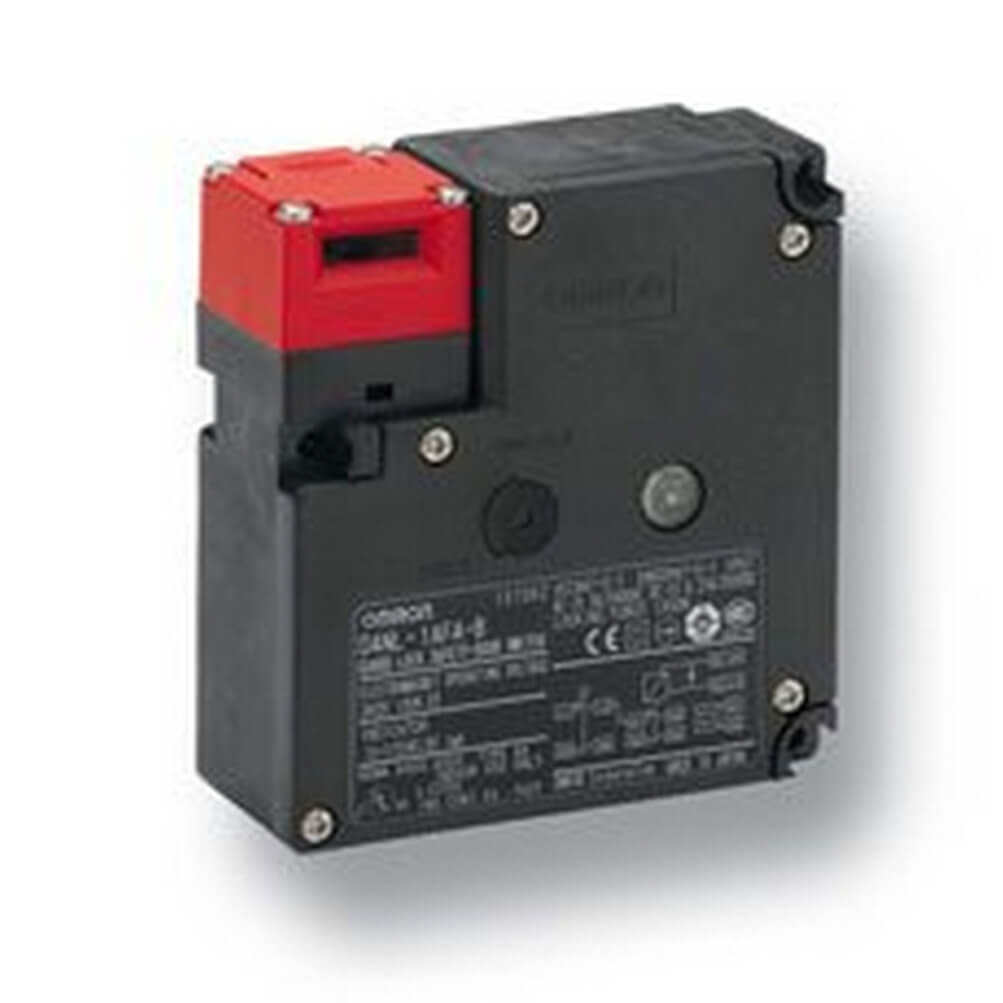

D4NL-1DFA-BS

Safety door-lock switch, mechanical lock, 24 VDC, 2NC + 2NC, PG13.5 entry, Front key release

SKU: D4NL-1DFA-BS
ID:1585403

Description

Door switch type Key-operated
Guard-lock
Material housing Plastic
Material head Plastic
Ambient temperature (operating) -10-55 °C
Connection method Terminal block
Cable length 0 m
Direction of operation Adjustable
Holding force 1300 N
Door contacts NC 2
Door contacts NO 0
Lock monitor contacts NC 2
Lock monitor contacts NO 0
Lock/Release key type Standard key
Lock/Release key position Front
Solenoid voltage 24 V
LED indicator
Degree of protection (IP) IP67
Conduit size PG13.5
Number of conduits 2
Switch action Slow action
Shape Cuboid
Overall length 95 mm
Height of sensor 35.5 mm
Width of sensor 88.5 mm
Lock/Release logic Power to unlock (Mechanical lock)



Accessories

D4DS-K1 Operation key for D4NL/NS; horizontal mounting



D4DS-K2 Operation key for D4NL/NS; vertical mounting



D4DS-K3 Operation key for D4NL/NS; adjustable mounting (horizontal)



D4DS-K5 Operation key for D4NL/NS; adjustable mounting (horizontal/vertical)





D4NL-1AFA-B

Datasheet
EN PDF
