| Mounting position | VerticalHorizontal |
| Structural design | Cold-regenerating adsorption dryer |

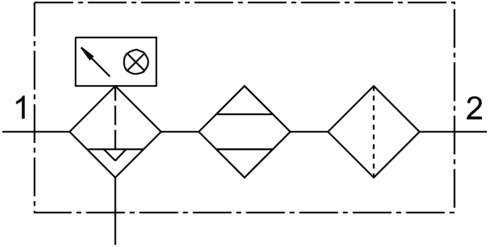

| Symbol | 00992135 |
| Inlet pressure 1 | 4 bar … 16 bar |
| KC characters | KC EMC |
| CE marking (see declaration of conformity) | as per EU pressure equipment directiveAs per EU EMC directiveAs per EU low voltage directive |
| Operating medium | Compressed air as per ISO 8573-1:2010 [6:-:4] |
| Information on operating and pilot media | Operation with oil lubrication not possibleno water in liquid form |
| Pressure dew point | -40 °C |
| Pressure dew point for reduced rate of flow | -70 °C |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Storage temperature | -20 °C … 60 °C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [2:1:2] at -70°CCompressed air as per ISO 8573-1:2010 [2:2:2] at -40°C |
| Temperature of medium | 2 °C … 50 °C |
| Ambient temperature | 5 °C … 50 °C |
| Product weight | 14000 g |
| Type of mounting | With accessories |
| Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 |
| Note on materials | RoHS-compliant |
| Housing material | Wrought aluminum alloy |
