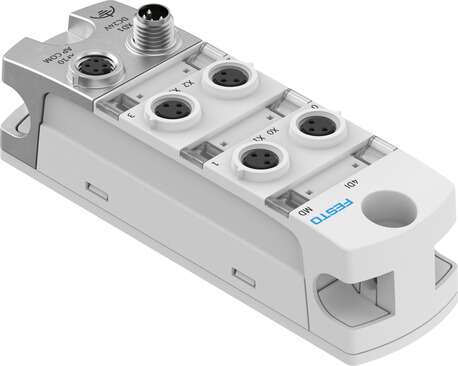

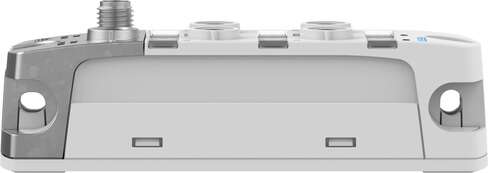

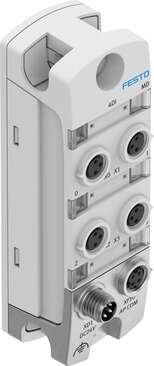

| Dimensions W x L x H | 30 mm x 102.5 mm x 35 mm |
| No. of inputs | 4 |
| Diagnostics via LED | Diagnostics per moduleStatus per channel |
| Diagnose per internal communication | Short circuit/overload in sensor supplyElectronics/sensors overvoltageElectronics/sensors undervoltage |
| Reverse polarity protection | yes |
| Fuse protection inputs (short circuit) | Internal electronic fuse per module |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 32 mA |
| Input debounce time | 0.1 ms3 ms10 ms20 ms |
| Note regarding operating voltage | SELV/PELV fixed power supplies requiredNote voltage drop |
| Max. power supply | 2 x 4 A (external fuse required) |
| Max. residual current of inputs per module | 0.8 A |
| Nominal operating voltage DC for electronics/sensors | 24 V |
| Power failure buffering | 10 ms |
| Electrical isolation of inputs between channels | no |
| Digital inputs, electrical isolation of input – internal communication | yes |
| Switching level | Signal 0: <= 5 VSignal 1: >= 11 V |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| Power supply, function | Incoming electronics/sensors and load |
| Power supply, type of connection | Plug |
| Power supply, connection technology | M8x1, A-coded as per EN 61076-2-104 |
| Power supply, number of pins/wires | 4 |
| Certification | RCM compliance mark |
| KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Storage temperature | -40 °C … 70 °C |
| Relative air humidity | 5 – 95 %Non-condensing |
| Degree of protection | IP65IP67 |
| Note on degree of protection | Unused connections sealed |
| Ambient temperature | -20 °C … 50 °C |
| Product weight | 81 g |
| Input characteristics | As per IEC 61131-2, type 3 |
| Max. cable length | 30 m inputs50 m system communication |
| Input switching logic | PNP (positive switching)2-wire sensors as per IEC 61131-23-wire sensors as per IEC 61131-2 |
| Communication interface, function | System communication XF10 IN |
| Communication interface, connection type | Socket |
| Communication interface, connection technology | M8x1, D-coded as per EN 61076-2-114 |
| Communication interface, number of pins/wires | 4 |
| Communication interface, protocol | AP-COM |
| Communication interface, shielding | yes |
| Electrical connection input, function | Digital input |
| Electrical connection input, connection type | 4x socket |
| Electrical input connection, connection technology | M8x1, A-coded as per EN 61076-2-104 |
| Electrical connection, input, number of pins/wires | 3 |
| Type of mounting | With through-hole |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Housing material | PAPCDie-cast zinc, nickel-plated |
| O-ring material | FPM |
