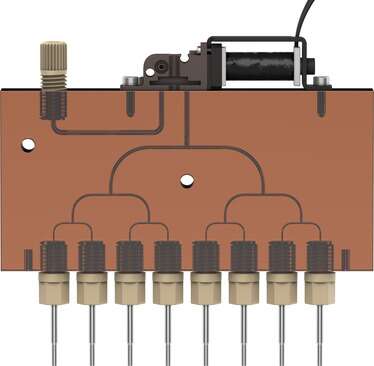

| Valve function | 2/2, closed, monostable |
| Operating pressure | 0 MPa … 0.1 MPa |
| Operating pressure | 0 bar … 1 bar |
| Operating pressure | 0 psi … 14.5 psi |
| Internal volume | 10 µl fluid space valve178 µl distributor block with valve, needle and fittings |
| Nominal width | 0.8 mm |
| Nominal width of dosing needle | 0.3 mm |
| Length of dosing needle | 30 mm |
| Width dimension | 9 mm |
| Sealing principle | Soft |
| Mounting position | Vertical |
| Reset method | Mechanical spring |
| Type of control | Direct |
| Suitability for vacuum | no |
| Min. dosing volume | 1 µl |
| Note on dosing volume | Depending on the configuration, environment and application |
| Typical dosing precision | ≤ 5 % tip-to-tip CV≤ 3% intra-run CV |
| Note on dosing precision | Depending on the configuration, environment and application |
| Max. switching frequency | 4 Hz |
| Note on switching frequency | Dependent on the ambient temperature and installation state |
| On switching time | 7 ms |
| Note on switching time on | Depending on the configuration, environment and application |
| Switching time off | 2 ms |
| Note on switching time off | Depending on the configuration, environment and application |
| Duty cycle | 100% |
| Electrical power consumption | 1.8 W |
| Nominal operating voltage DC | 24 V |
| Permissible voltage fluctuations | +/- 10 % |
| Medium | Liquid mediaGaseous media |
| Information on medium | Maximum particle size 20 µm |
| Application note | See application note (available on the support portal at festo.com) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 0 – No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | 5 °C … 40 °C |
| Temperature of medium | 5 °C … 50 °C |
| Degree of protection | IP30 |
| Note on degree of protection | In mounted state |
| Ambient temperature | 5 °C … 40 °C |
| Product weight | 52 g |
| Electrical connection | 2-wire2x single wiresOpen end |
| Cable length | 0.15 m |
| Wire ends | Stripped |
| Nominal conductor cross section | AWG28 |
| Type of mounting | With through-hole for M3 screw |
| Fluid connector | Internal thread 1/4-28 UNF-2B |
| Note on fluid connector | Fitting enclosed for pneumatic tubing with 3 mm outside diameter |
| Material of dosing needle | High-alloy stainless steel |
| Material number for dosing needle | 1.4404 |
| Note on materials | RoHS-compliant |
| Materials in contact with the media | ETFEFPMPEIPPSHigh-alloy stainless steel |
| Actuation type | Electrical |
| Nominal altitude of use above sea level | <= 2000 m NHN |
| Relative air humidity | 0 – 95 %Non-condensing |
