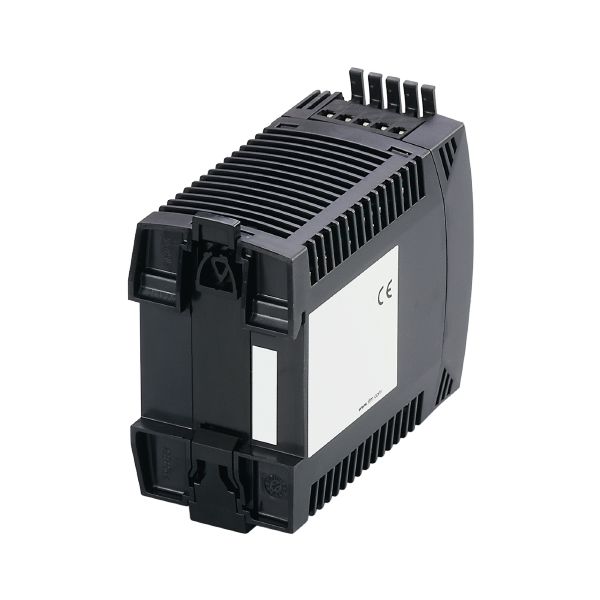

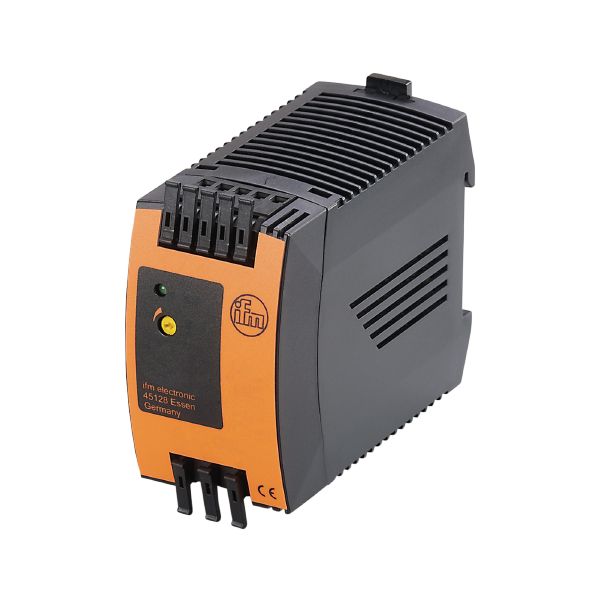

DN1020

Description

Electrical data

Nominal voltage AC [V]	< 230
Nominal frequency AC [Hz]	50…60
Input voltage range AC [V]	100…240
Output voltage DC [V]	24…28
Protection class	I; (IEC 61140)
Overvoltage protection	yes; (< 40)
Output voltage [V]	adjustable
Output voltage tolerance [%]	2
Max. output current at min. output voltage [A]	1.3
Number of output circuits	1
Max. residual ripple [mV]	50
Efficiency (nominal voltage 230 V AC / 50 Hz) [%]	87.5
Derating [W/K]	1 (60…70 °C)
Mains buffering time (nominal voltage 230 V AC / 50 Hz) [ms]	190

Outputs

Short-circuit protection	yes
Overload protection	yes

Operating conditions

Ambient temperature [°C]	-10…70
Protection	IP 20

Tests / approvals

EMC

EN 61000-6-2
EN 61000-6-3

MTTF [years]

411

Mechanical data

Displays / operating elements

Display

function

LED, green

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	spring clamp terminals: …2.5 mm²

DN1020

Datasheet
EN PDF
