$201,90
| Frequency AC [Hz] | 47…64 | |
|---|---|---|
| Operating voltage tolerance [%] | 10 | |
| Operating voltage tolerance 2 [%] | 10 | |
| Operating voltage [V] | automatic range selection | |
| Nominal voltage AC [V] | < 230 | |
| Input voltage range AC [V] | 100…120 / 200…240; (automatic range selection) | |
| Output voltage DC [V] | 24…28 | |
| Protection class | I; (IEC 61140) | |
| Overvoltage protection | yes; (< 39 DC) | |
| Output voltage [V] | adjustable; output voltage to SELV, PELV | |
| Max. output current at min. output voltage [A] | 5 | |
| Max. output current at max. output voltage [A] | 4.3 | |
| Max. output current peak at min. output voltage [A] | 6 | |
| Max. output current peak at max. output voltage [A] | 5.1 | |
| Output power (permanent) [W] | 120 | |
| Output power (peak) [W] | 144 | |
| Note on output power (peak) [W] |
|
|
| Power factor (nominal voltage 120 V AC / 60 Hz) | 0.56 | |
| Power factor (nominal voltage 230 V AC / 50 Hz) | 0.47 | |
| Power reserve [%] | 20 | |
| Number of output circuits | 1 | |
| Max. residual ripple [mV] | 50 | |
| Switch-on peak current (nominal voltage 120 V AC / 60 Hz) [A] | 3 | |
| Switch-on peak current (nominal voltage 230 V AC / 50 Hz) [A] | 3 | |
| Inrush current limitation | yes | |

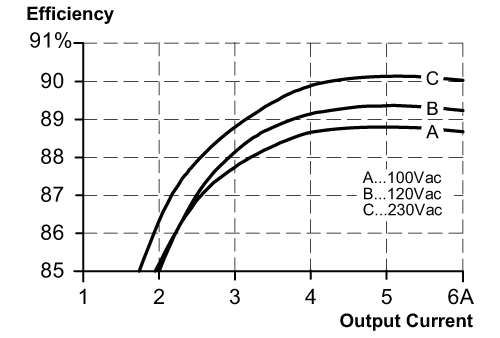

| Efficiency (nominal voltage 120 V AC / 60 Hz) [%] | 89.4 | |
| Efficiency (nominal voltage 230 V AC / 50 Hz) [%] | 90.2 | |
| External input protection | ≤ B-10 A / ≤ C-6 A | |

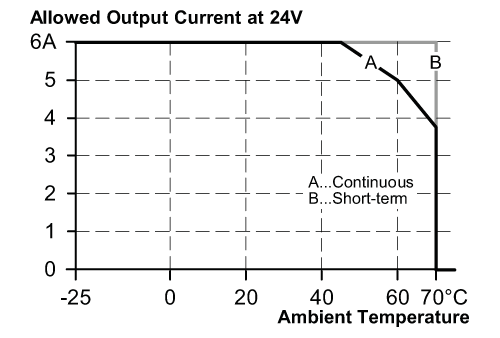

| Derating [W/K] | 3 (60…70 °C) | |

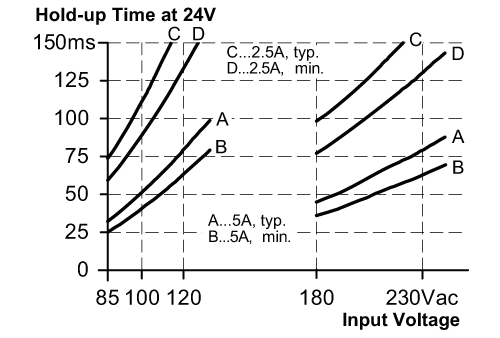

| Mains buffering time (nominal voltage 120 V AC / 60 Hz) [ms] | 80 | |
| Mains buffering time (nominal voltage 230 V AC / 50 Hz) [ms] | 78 | |
| Input current (nominal voltage 120 V AC / 60 Hz) [A] | 2.05 | |
| Input current (nominal voltage 230 V AC / 50 Hz) [A] | 1.23 | |
| Power loss (nominal voltage 120 V AC / 60 Hz) [W] | 14.5 | |
| Power loss (nominal voltage 230 V AC / 50 Hz) [W] | 13.2 | |
| Back feeding protection [V] | 35 |
| Short-circuit proof | yes |
|---|---|
| Overload protection | yes |

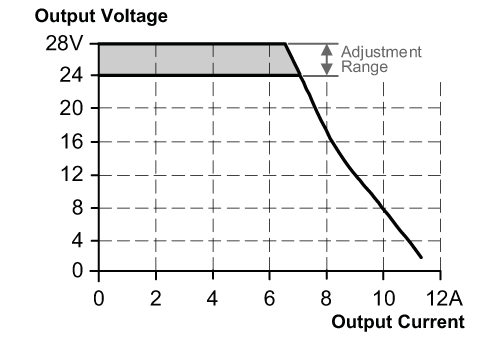

| Overload performance | output current constant |
| Parallel connection of outputs possible | no |
| Series connection of outputs possible | yes |
| Ambient temperature [°C] | -25…70 | |
|---|---|---|
| Note on ambient temperature |
|
|
| Storage temperature [°C] | -40…85 | |
| Max. relative air humidity [%] | 95; (IEC 60068-2-30) | |
| Protection | IP 20; (EN 60529) | |
| Pollution degree | 2; (IEC 62103: conductive soiling not permitted) |
| EMC |
|
||||||
|---|---|---|---|---|---|---|---|
| Vibration resistance |
|
||||||
| Shock resistance |
|
| Weight [g] | 594.5 |
|---|---|
| Type of mounting | rail; (TH35 (EN 60715)) |
| Dimensions [mm] | 124 x 40 x 122.5 |
| Materials | steel sheet |
| Display |
|
|---|
| Remarks |
|
||
|---|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | screw terminals: |
|---|
Datasheet
EN PDF
