$263,70
| Frequency AC [Hz] | 47…64 | |
|---|---|---|
| Operating voltage tolerance [%] | 10 | |
| Operating voltage tolerance 2 [%] | 10 | |
| Operating voltage [V] | automatic range selection | |
| Nominal voltage AC [V] | < 230 | |
| Nominal frequency AC [Hz] | 50…60 | |
| Input voltage range AC [V] | 100…120 / 200…240 | |
| Output voltage DC [V] | 24…28 | |
| Protection class | I; (IEC 61140) | |
| Overvoltage protection | yes; (< 39 DC) | |
| Output voltage [V] | adjustable; output voltage to SELV, PELV | |
| Max. output current at min. output voltage [A] | 10 | |
| Max. output current at max. output voltage [A] | 8.6 | |
| Max. output current peak at min. output voltage [A] | 12 | |
| Max. output current peak at max. output voltage [A] | 10.3 | |
| Output power (permanent) [W] | 240 | |
| Output power (peak) [W] | 288 | |
| Note on output power (peak) [W] |
|
|
| Power factor (nominal voltage 120 V AC / 60 Hz) | 0.59 | |
| Power factor (nominal voltage 230 V AC / 50 Hz) | 0.51 | |
| Power reserve [%] | 20 | |
| Number of output circuits | 1 | |
| Max. residual ripple [mV] | 50 | |
| Switch-on peak current (nominal voltage 120 V AC / 60 Hz) [A] | 3 | |
| Switch-on peak current (nominal voltage 230 V AC / 50 Hz) [A] | 3 | |
| Inrush current limitation | yes | |

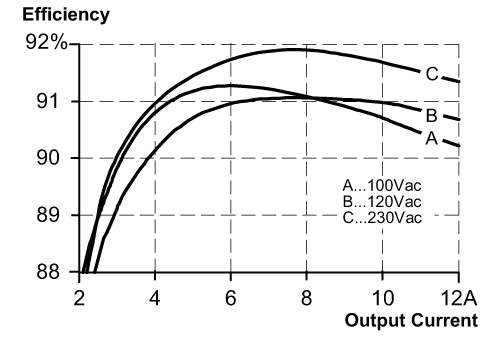

| Efficiency (nominal voltage 120 V AC / 60 Hz) [%] | 91 | |
| Efficiency (nominal voltage 230 V AC / 50 Hz) [%] | 91.6 | |
| External input protection | ≤ B-10 A / ≤ C-6 A | |

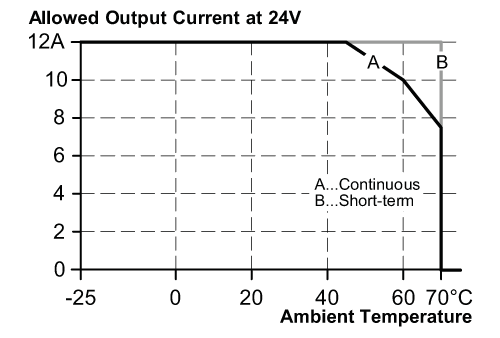

| Derating [W/K] | 6 (60…70 °C) | |

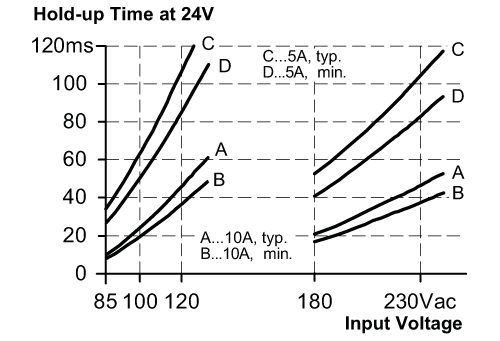

| Mains buffering time (nominal voltage 120 V AC / 60 Hz) [ms] | 46 | |
| Mains buffering time (nominal voltage 230 V AC / 50 Hz) [ms] | 47 | |
| Input current (nominal voltage 120 V AC / 60 Hz) [A] | 3.73 | |
| Input current (nominal voltage 230 V AC / 50 Hz) [A] | 2.23 | |
| Power loss (nominal voltage 120 V AC / 60 Hz) [W] | 23.7 | |
| Power loss (nominal voltage 230 V AC / 50 Hz) [W] | 22 | |
| Back feeding protection [V] | 35 |
| Short-circuit proof | yes |
|---|---|
| Overload protection | yes |

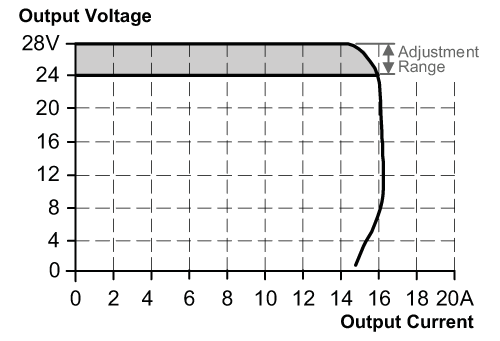

| Overload performance | output current constant |
| Type DC-OK signal | relay output |
| Reliability of the DC OK signal | 60 V DC (0.3 A) / 30 V DC (1 A) / 30 V AC (0.5 A) |
| Ambient temperature [°C] | -25…70 | |
|---|---|---|
| Note on ambient temperature |
|
|
| Storage temperature [°C] | -40…85 | |
| Max. relative air humidity [%] | 95; (IEC 60068-2-30) | |
| Protection | IP 20; (EN 60529) | |
| Pollution degree | 2; (IEC 62103: conductive soiling not permitted) | |
| Overheat protection | yes |
| EMC |
|
||||||
|---|---|---|---|---|---|---|---|
| Vibration resistance |
|
||||||
| Shock resistance |
|
| Weight [g] | 875.5 |
|---|---|
| Type of mounting | rail; (TH35 (EN 60715)) |
| Dimensions [mm] | 124 x 62 x 122.5 |
| Materials | steel sheet |
| Display |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | screw terminals: |
|---|
