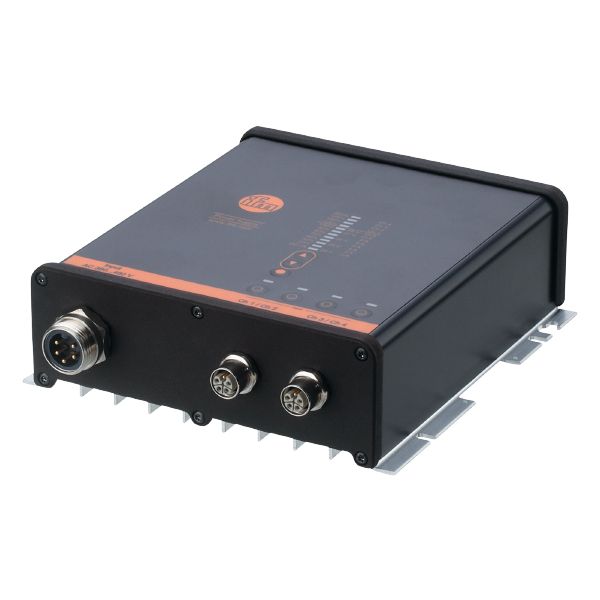

DN4234

DN4234 - Image 2

DN4234 - Image 3

DN4234 - Image 4

DN4234 - Image 5

DN4234 - Image 6

DN4234 - Image 7

DN4234

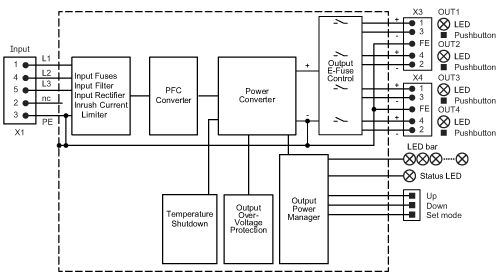

Protection of the wiring via configurable electronic circuit breakers
Installation without control cabinet
Additional diagnostics by measuring current, voltage and mains quality as well as counting operating hours
Energy-efficient generation of extra-low voltage without power loss

SKU: DN4234

$729,40

Description

Electrical data

Nominal voltage AC [V]	400 / 480
Nominal frequency AC [Hz]	50…60
Input voltage range AC [V]	323…552
Output voltage DC [V]	24…28
Protection class	I
Max. power-on delay time [ms]	12
Output voltage tolerance [%]	0.2

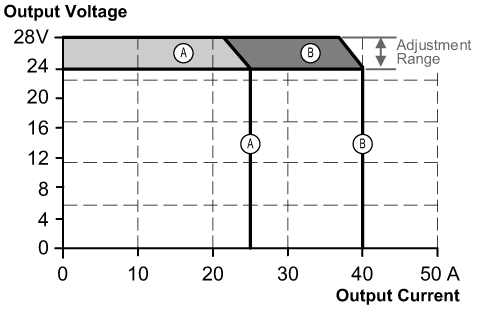

Max. output current at min. output voltage [A]	20.8
Max. output current at max. output voltage [A]	17.8

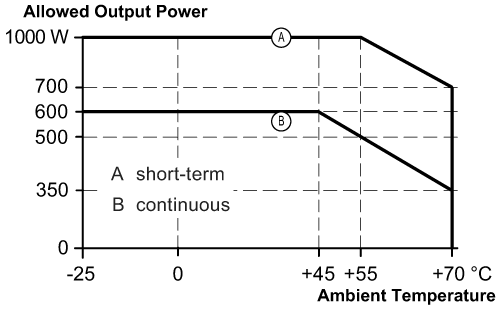

Output power (permanent) [W]	500
Output power (peak) [W]	1000
Power factor (nominal voltage 400 V AC / 50 Hz)	0.94
Power factor (nominal voltage 480 V AC / 50 Hz)	0.95
Number of output circuits	4
Switch-on peak current (nominal voltage 400 V AC / 60 Hz) [A]	2.1
Switch-on peak current (nominal voltage 480 V AC / 50 Hz) [A]	2
Efficiency (nominal voltage 400 V AC / 60 Hz) [%]	94.2
Efficiency (nominal voltage 480 V AC / 50 Hz) [%]	94

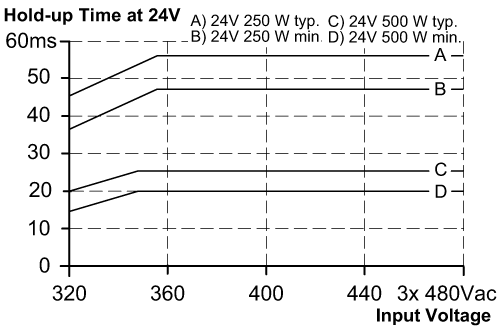

Mains buffering time (nominal voltage 400 V AC / 60 Hz) [ms]	24
Mains buffering time (nominal voltage 480 V AC / 50 Hz) [ms]	24
Input current (nominal voltage 400 V AC / 60 Hz) [A]	1.1
Input current (nominal voltage 480 V AC / 50 Hz) [A]	0.9

Outputs

Load capacitance, total [mF]	12.5

Operating conditions

Ambient temperature [°C]	-25…70
Storage temperature [°C]	-40…85
Max. relative air humidity [%]	95; (relative humidity)
Max. height above sea level [m]	5000
Protection	IP 65; IP 67
Pollution degree	3

Tests / approvals

EMC

EN 61000-4-2 CD	8 kV / failure criterion A
EN 61000-4-2 AD	15 kV / failure criterion A
EN 61000-4-3	80 Mhz…2.7 GHz / 20 V/m failure criterion A
EN 61000-4-3	2.7 GHz…6 GHz kV / 10 V/m failure criterion A
EN 61000-4-8	50 / 60 Hz / 30 A/m failure criterion A
EN 61000-4-4 Burst	4 kV / failure criterion A
EN 61000-4-5 Surge	2 kV Lx / Ly / failure criterion A
EN 61000-4-5 Surge	4 kV L / PE / failure criterion A
EN 61000-4-5 Surge	1 kV + / – / failure criterion A
EN 61000-4-5 Surge	1 kV + – / PE / failure criterion A
EN 61000-4-5 Surge	1 kV + – / PE / failure criterion A
EN 61000-4-5 Surge	1 kV DC-OK / PE / failure criterion A
EN 61000-4-6	0.15…80 MHz / 20 V failure criterion A
EN 61000-4-11	0 V up to 1 cycle / failure criterion A
EN 61000-4-11	40 % of V / 200 ms failure criterion A
EN 61000-4-11	70 % of V / 500 ms failure criterion A
EN 61000-4-11	0 V / 5000 ms failure criterion C
VDE 0160	1550 V / 1.3 ms failure criterion A
EN 55032	Class B
EN 55032	Class B
EN 55011	Class B
EN 61000-3-2
EN 61000-3-3

Continuous shock resistance

IEC 60068-2-27

30 g 6 ms / 20 g 11 ms

Vibration resistance

IEC 600068-2-6

2…17.8 Hz ± 1.6mm / 17.8…500 Hz 2 g

Mechanical data

Weight [g]	1558.8
Dimensions [mm]	182 x 183 x 59
Materials	housing: aluminium alloy; housing cap: PC; screws: steel bronzed

Remarks

Pack quantity	1 pcs.

Electrical connection – Output voltage

	Connector: 2 x M12; coding: L; Locking: brass

Electrical connection – power supply

	Connector: 1 x 7/8″; Locking: brass
