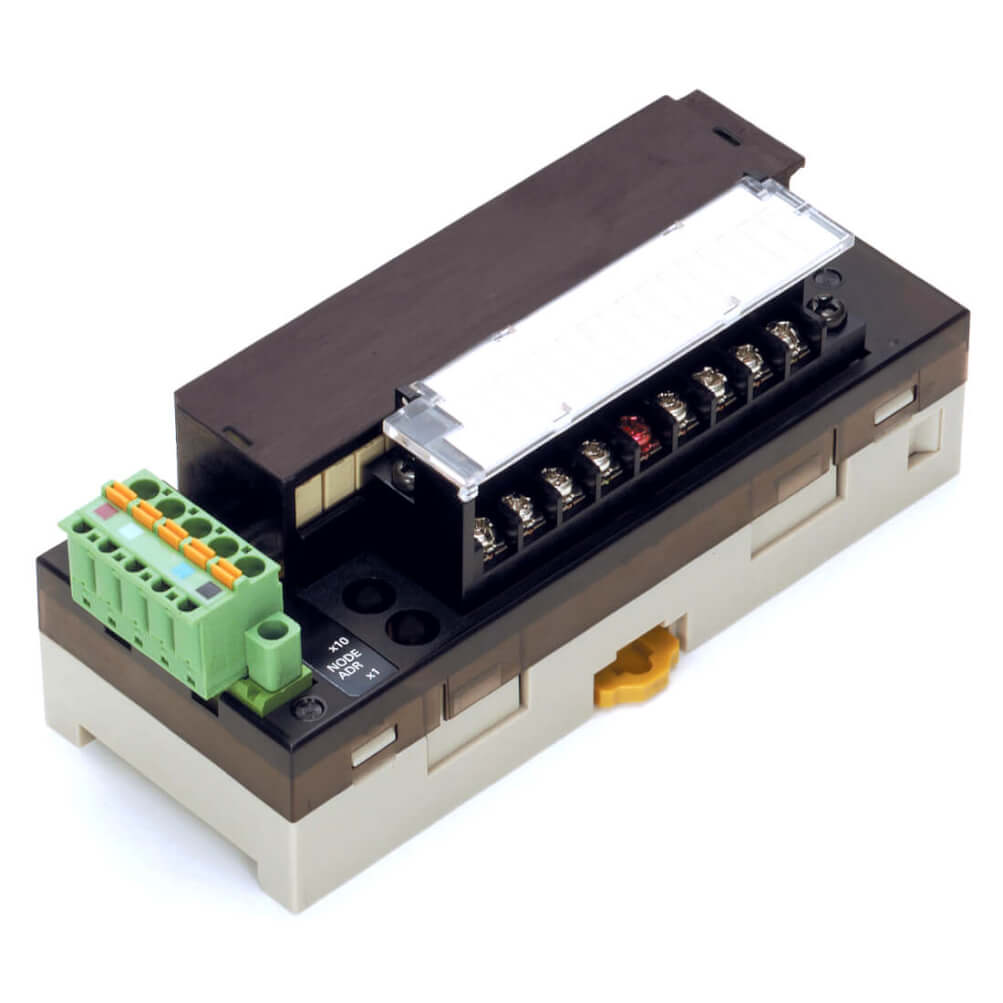

DRT2-ROS16

DeviceNet digital output unit, 16 x relay outputs, 3A, 240 VAC, 24 VDC, screw terminal block



SKU: DRT2-ROS16
ID:1593606

Description

Communication port(s) DeviceNet Slave
Type of module Digital I/O
I/O connection type Screw
Connection method 1-wire
Number of digital inputs 0
Digital input type None
Number of digital outputs 16
Digital output type Relay NO
Permitted voltage at output 0-250 V
Output current 3 A
Short-circuit protected outputs
I/O system I/O Expansion Link
Degree of protection (IP) IP20
Product Height (unpacked) 50 mm
Product Width (unpacked) 125 mm
Product Depth (unpacked) 51.8 mm
Product Weight (unpacked) 260 g



Accessories

DCN1-1C DeviceNet T-branch tap for 1 branch line, 3 connectors with screws, side cable entry



DCN1-1NC DeviceNet T-Branch tap for 1 branch line, 3 parallel clamp connectors, top cable entry



DCN1-3C DeviceNet T-branch tap for 3 branch lines, 5 connectors with screws, side cable entry



DCN1-3NC DeviceNet T-Branch tap for 3 branch lines, 5 parallel clamp connectors, top cable entry



DRS1-T CompoNet/DeviceNet termination terminal block



XW4G-05C4-TF-D DeviceNet connector, multi-branch parallel screwless, connector insertion and wiring in same direction.



XWT-ID08-1 CRT1/DRT2/GX-series I/O expansion unit, 8 x 24 VDC inputs, PNP (1 max per I/O terminal, specific models only)



XWT-ID16-1 CRT1/DRT2/GX-series I/O expansion unit, 16 x 24 VDC inputs, PNP (1 max per I/O terminal, specific models only)



XWT-OD08-1 CRT1/DRT2/GX-series I/O expansion unit, 8 x 24 VDC outputs, 0.5 A, PNP (1 max per I/O terminal, specific models only)



XWT-OD16-1 CRT1/DRT2/GX-series I/O expansion unit, 16 x 24 VDC outputs, 0.5 A, PNP (1 max per I/O terminal, specific models only)





DeviceNet Smart Slaves
