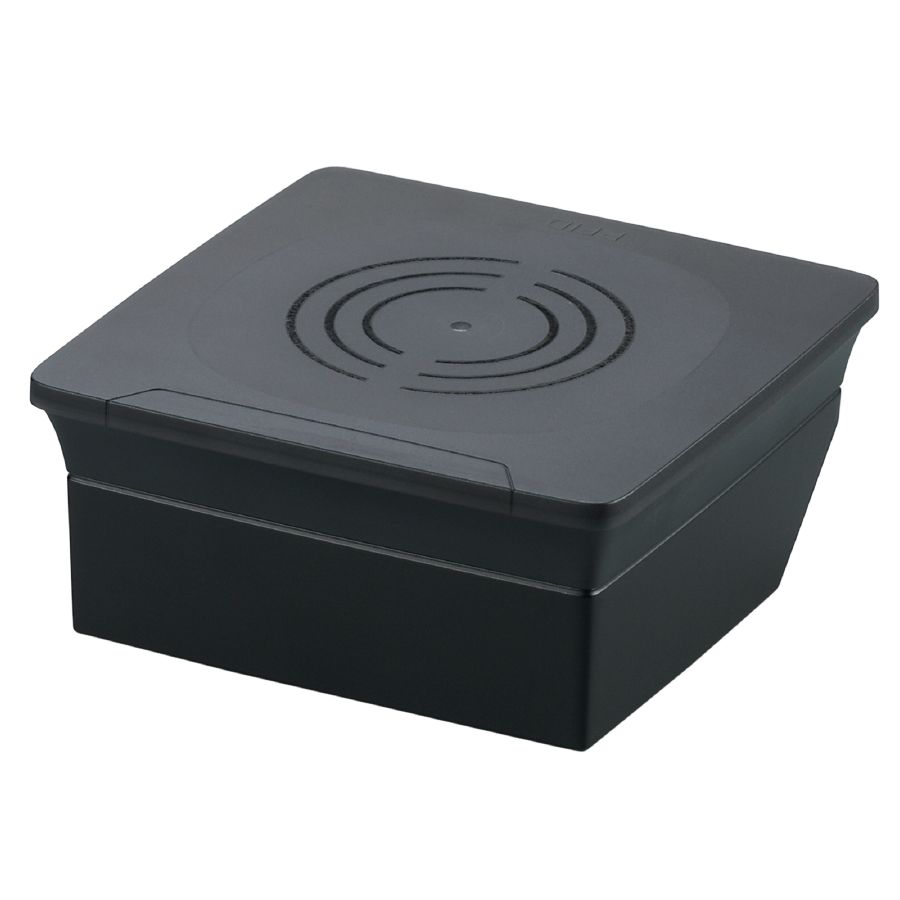

Application
| Radio approval for |
USA; Canada; EU/RED; Australia; China; South Korea; Japan; Taiwan; Singapore; Malaysia |
| Note on radio approval |
| The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
|
Electrical data
| Operating voltage [V] |
19.2…28.8 DC |
| Current consumption [mA] |
500 |
| Protection class |
III |
| Operating frequency [MHz] |
13,56 |
| RFID standard |
ISO 15693 |
Outputs
| Max. current load per output [mA] |
100; (max.) |
Detection zone
| Distance write/read head front [mm] |
600 |
| Distance write/read head side [mm] |
850 |
| Note on distance write/read head |
|
| Distance to the ID tag [mm] |
| 50 mm tag |
: |
≤ 150 |
| ISO card |
: |
≤ 180 |
|
Interfaces
| Communication interface |
Ethernet |
Ethernet – PROFINET
| Protocol |
PROFINET |
| Usage type |
data transmission |
Ethernet – TCP/IP
| Protocol |
TCP/IP |
| Factory settings |
| IP address: 192.168.0.79 |
| subnet mask: 255.255.255.0 |
| gateway IP address: 192.168.0.100 |
|
| Usage type |
parameter setting |
Operating conditions
| Ambient temperature [°C] |
-20…60 |
| Storage temperature [°C] |
-25…80 |
| Protection |
IP 67 |
Tests / approvals
| Shock resistance |
| IEC 60028-2-27 |
40 g (6 ms) / bump |
|
50 g (11 ms) / single shock |
|
| Vibration resistance |
| EN 60068-2-6 |
2 g (10…150 Hz) |
|
| MTTF [years] |
130 |
Mechanical data
| Weight [g] |
641.5 |
| Dimensions [mm] |
113 x 118.5 x 50 |
| Materials |
PBT / PC; stainless steel; aluminium |
Displays / operating elements
| Display |
| power supply |
1 x LED, green |
| LED bar display |
4 x LED, yellow signal strength ID tag |
| status |
2 x LED, green/red fieldbus interface |
| status |
2 x LED, green/yellow Ethernet |
|
Electrical connection – Ethernet
| ETH1 / ETH2 |
Connector: 2 x M12; coding: D |
Electrical connection – power supply
| PWR |
Connector: 1 x M12; coding: A |
