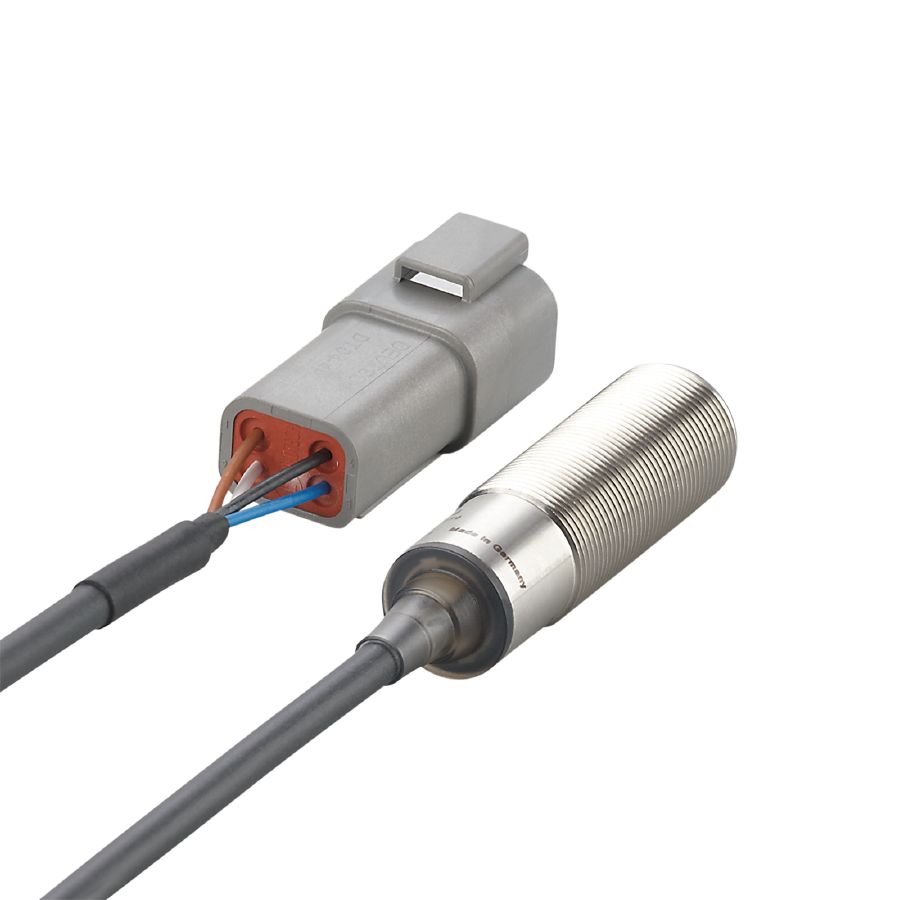

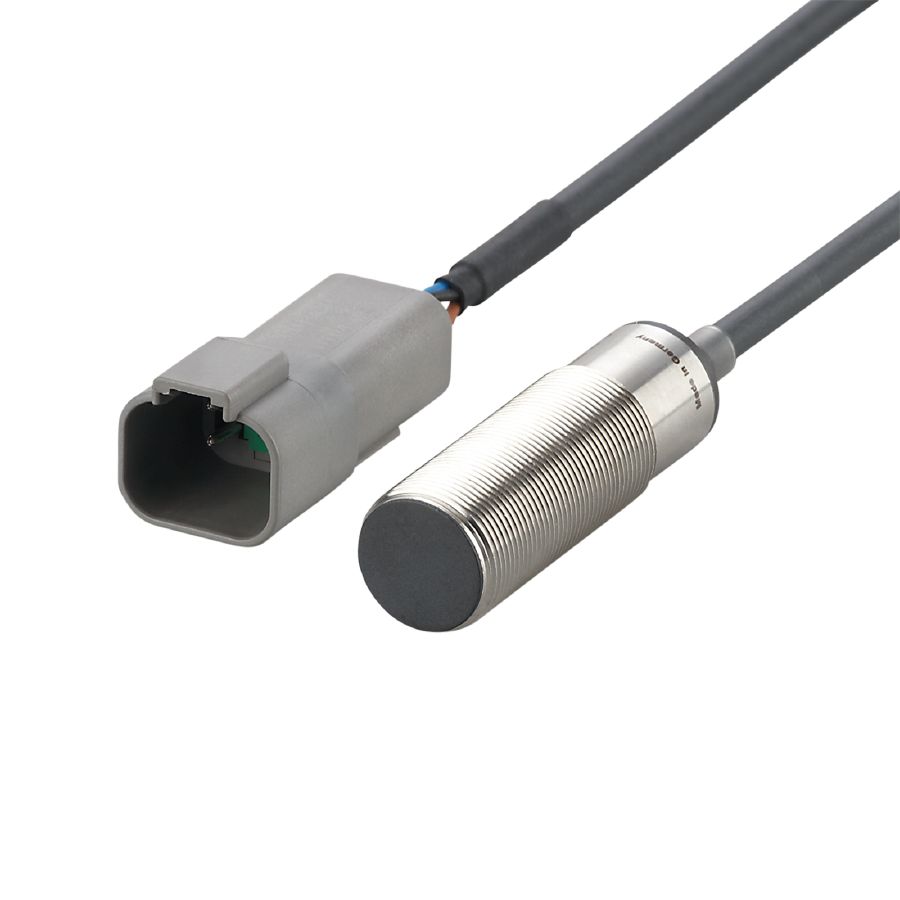

DTM428

SKU: DTM428

$229,40

Description

Application
Radio approval for USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; Singapore
Note on radio approval
The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.
Electrical data
Operating voltage [V] 9…32 DC
Current consumption [mA] < 50 (24 V) / < 80 (12 V)
Protection class III
Operating frequency [MHz] 13,56
RFID standard ISO 15693
Detection zone
Distance to the ID tag [mm]
≤ 15
Interfaces
Communication interface CAN
CAN
Protocol CANopen
Operating conditions
Ambient temperature [°C] -40…85
Storage temperature [°C] -40…85
Protection IP 67; IP 69K
Tests / approvals
Shock resistance
EN 60068-2-27 40 g 6 ms / repetitive
EN 60068-2-27 50 g 11 ms / not repetitive
Vibration resistance
EN 60068-2-6 10 g 10…2000 Hz
MTTF [years] 506
Mechanical data
Weight [g] 120.5
Housing threaded type
Mounting flush mountable
Dimensions [mm] M18 x 1 / L = 58
Thread designation M18 x 1
Materials housing: stainless steel (1.4301 / 304); Protective cover: PPS; cable plug: PUR
Tightening torque [Nm] < 25
Displays / operating elements
Display
Preoperational Mode 1 x LED, green lights
Operational Mode 1 x LED, green flashing
errors 1 x LED, red flashing
tag communication 1 x LED, yellow lights
Remarks
Pack quantity 1 pcs.
Electrical connection
Cable: 0.8 m



DTM428-00_EN-US

Datasheet
EN PDF
