$137,80
| Application | signalling machine conditions |
|---|
| Operating voltage [V] | 18…30 DC; (to SELV/PELV ; “supply class 2” to cURus) |
|---|---|
| Nominal voltage DC [V] | 24 |
| Current consumption [mA] | < 90 |
| Switch-on peak current [mA] | 400 |
| Switch-on peak current duration [ms] | 50 |
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| SIO mode | yes | ||||
| Required master port type | A | ||||
| Min. process cycle time [ms] | 2.3 | ||||
| Supported DeviceIDs |
|
| Ambient temperature [°C] | -25…50 |
|---|---|
| Storage temperature [°C] | -40…75 |
| Max. relative air humidity [%] | 90 |
| Max. height above sea level [m] | 4000 |
| Protection | IP 67 |
| Pollution degree | 2 |
| Weight [g] | 153 |
|---|---|
| Dimensions [mm] | Ø 56 / L = 61 |
| Materials | housing: PC |
| Display |
|
|---|

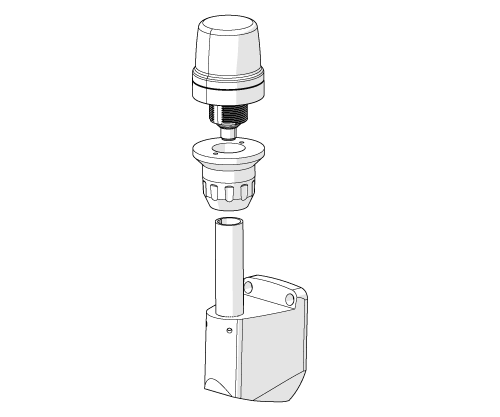

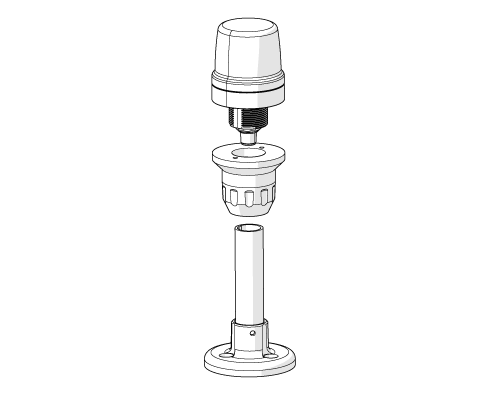

| Accessories (optional) |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| IO-Link | Connector: M12; coding: A |
|---|
Datasheet
EN PDF
