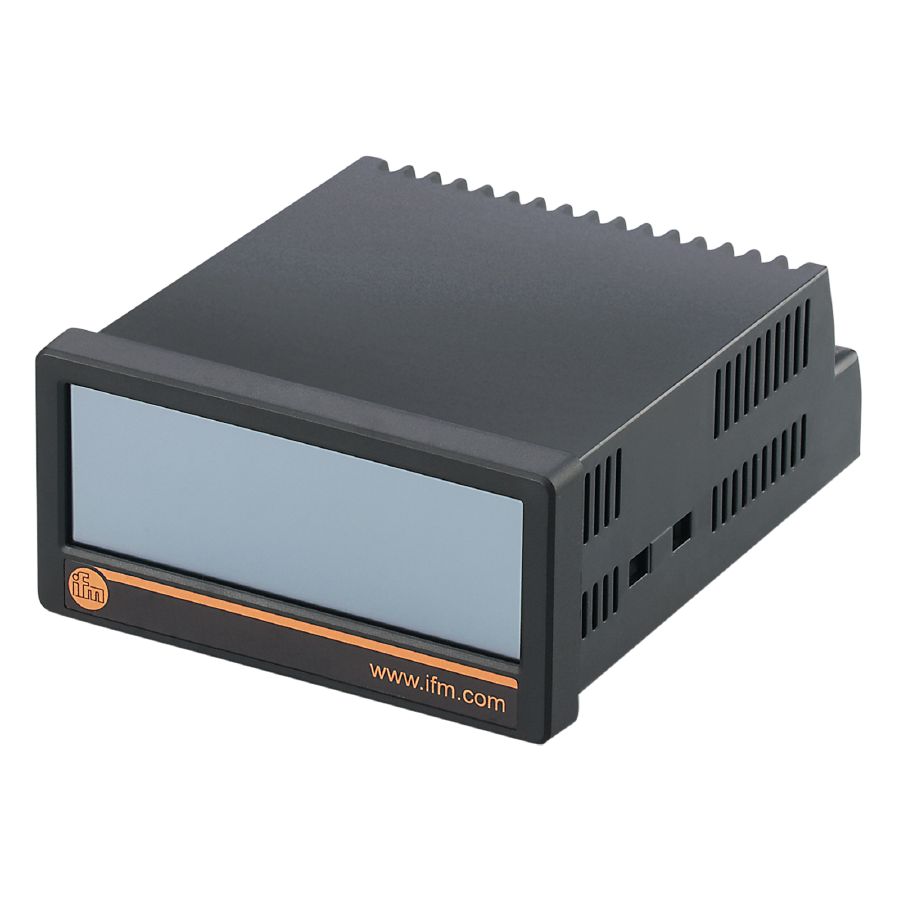

DX2023

  • For monitoring rotational speed, speed, quantity or handling time
  • For displaying and evaluating pulse sequences with high input frequency
  • Clearly visible LCD display
  • Intuitive handling due to touch display and plain text
  • With four adjustable switching outputs



SKU: DX2023

$288,30

Description

Product characteristics
Dimensions [mm] 48 x 112 x 116
Application
Application universal evaluation and display for all physical units which can be derived from pulse sequences
Electrical data
Frequency AC [Hz] 50…60
Operating voltage [V] 115…230 AC / 18…30 DC
Current consumption [mA] 100
Inputs / outputs
Number of inputs and outputs Number of digital inputs: 2; Number of digital outputs: 4
Inputs
Number of digital inputs 2
Outputs
Number of digital outputs 4
Overload protection yes
Operating conditions
Ambient temperature [°C] -20…60
Storage temperature [°C] -25…70
Protection IP 65
Protection rating terminals IP 20
Tests / approvals
EMC
EN 61000-6-2
EN 61000-6-3
EN 61000-6-4
Mechanical data
Weight [g] 352
Type of mounting panel cutout: 91 x 43 mm
Dimensions [mm] 48 x 112 x 116
Materials Noryl UL94-V-0
Displays / operating elements
Display
colour display full graphic LCD display, touch screen
Electrical connection

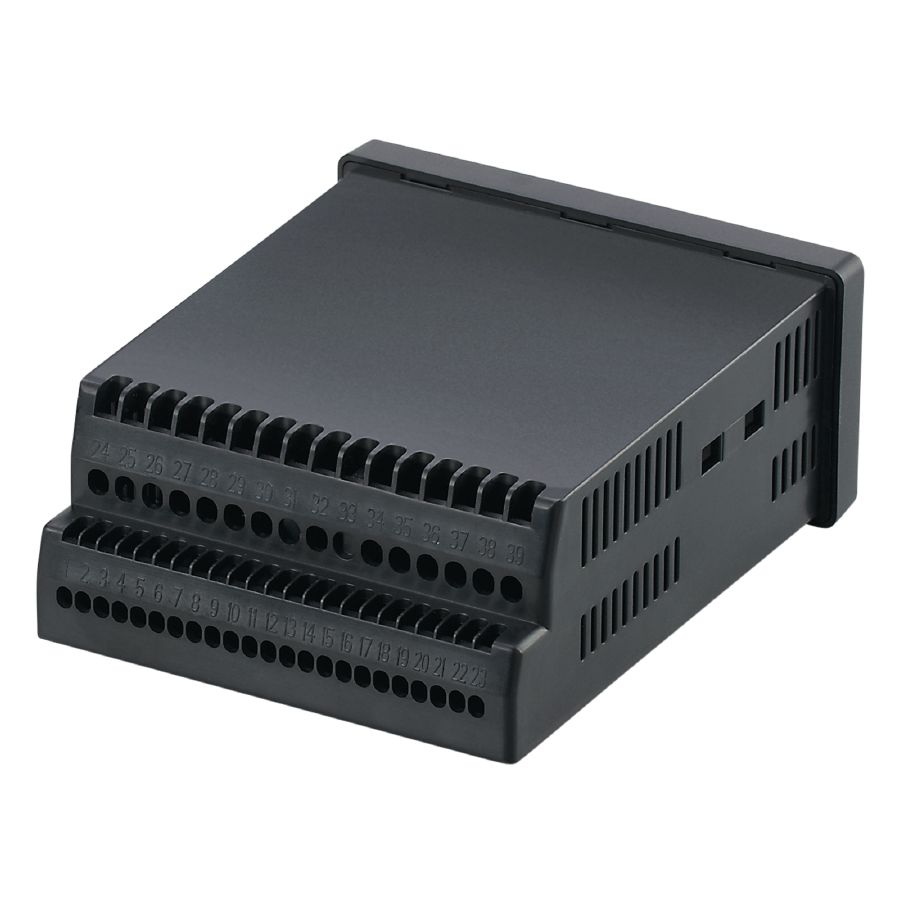

Connection screw terminals:



PDF data sheet
