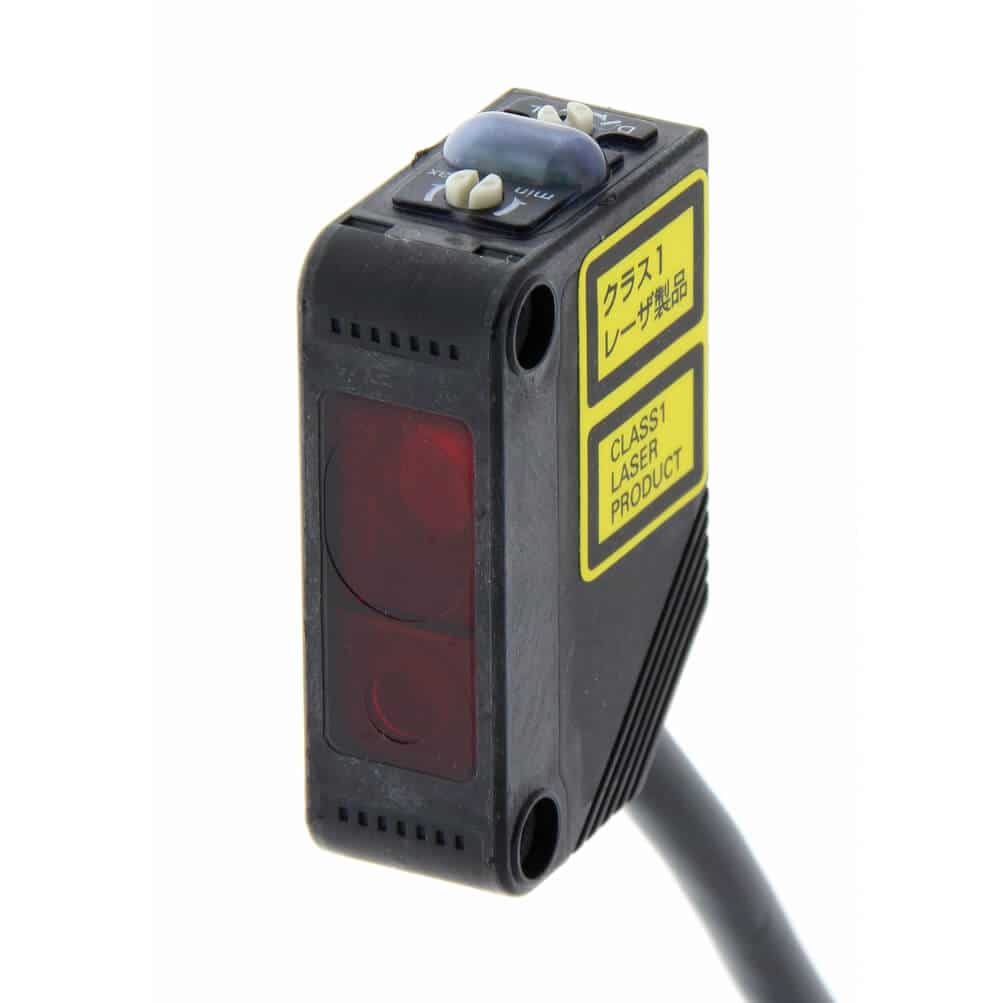

E3Z-LL83 2M

Photoelectric sensor, rectangular housing, red laser class 1, background suppression, high speed version, 300 mm, PNP, Light-ON/Dark-ON, 2 m cable

SKU: E3Z-LL83 2M
ID:1580057

Description

Specifications

Shape Cuboid
Sensing method Background suppression
Sensing distance 300 mm
Sensing distance (min.) 25 mm
Setting method Manual adjustment
Connection method Cable
Cable length 2 m
Output type PNP
Operation mode Dark-ON, Light-ON
Response time 0.5 ms
Material housing PBT
Thread size Other
Product Width (unpacked) 10.8 mm
Product Height (unpacked) 31 mm
Product Depth (unpacked) 20 mm
Type of light Laser diode, red light
Laser class 1
Spot size 0.5 mm
Power supply voltage 12-24 V
Features High precision positioning & detection
Degree of protection (IP) IP67

Accessories

E39-L104 Mounting bracket for E3Z sensor, standard, vertical mounting

E39-L142 Mounting Bracket, protective side wall (for E3Z)

E39-L144 Sensor mounting Bracket, Protective bracket for E3Z pre-wired

E39-L150 Sensor mounting Bracket for E3Z, 100mm high post

E39-L151 Sensor mounting Bracket, for E3Z, 200mm high post

E39-L153 Mounting bracket for E3Z sensor, L shape, for prewired

E39-L43 Mounting bracket for E3Z sensor, side mounting

E39-L44 Mounting bracket for E3Z sensor, rear mounting

E39-L98 Protective metal cover for E3S-A/E3Z vertical sensor

E3Z Laser Series

Datasheet
EN PDF
