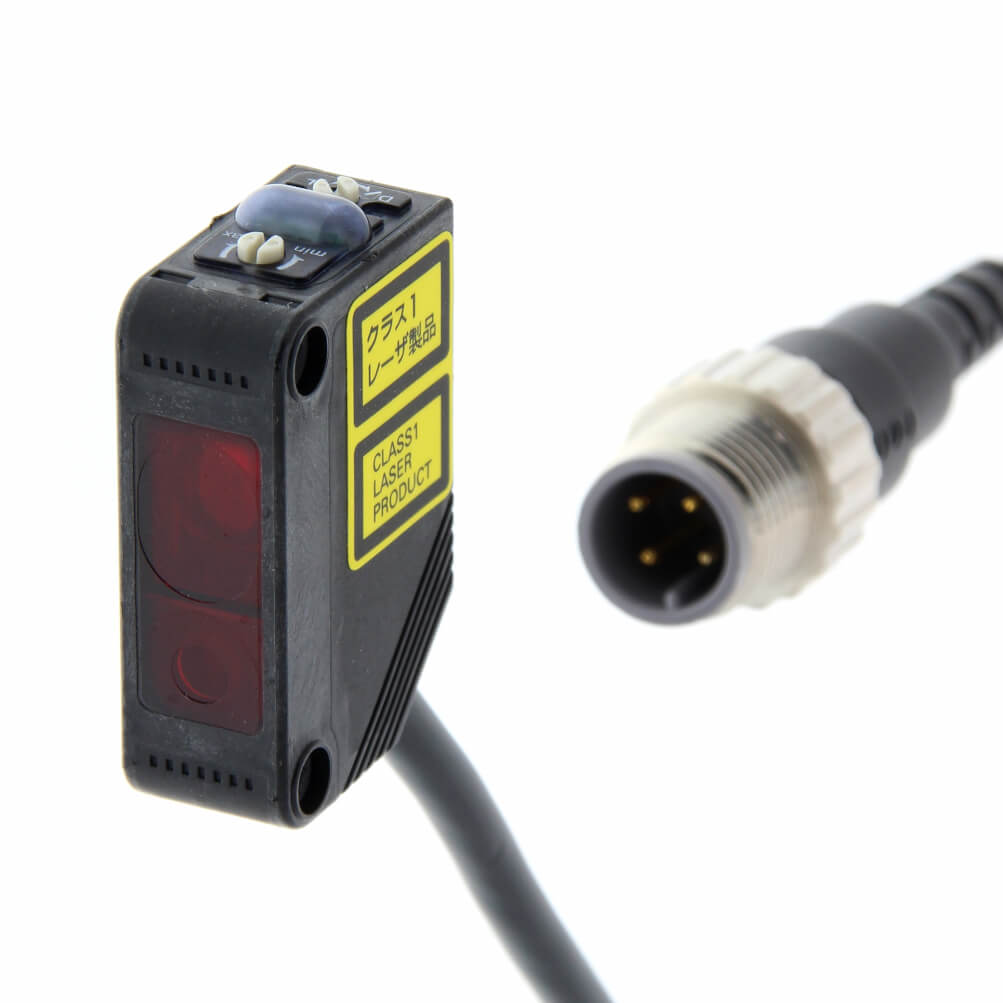

Photoelectric sensor, rectangular housing, red laser class 1, background suppression, high speed version, 300 mm, PNP, Light-ON/Dark-ON, M12 pigtail connector, 0.3 m
| Shape | Cuboid |
| Sensing method | Background suppression |
| Sensing distance | 300 mm |
| Sensing distance (min.) | 25 mm |
| Setting method | Manual adjustment |
| Connection method | M12 pigtail connector |
| Cable length | 0.3 m |
| Output type | PNP |
| Operation mode | Dark-ON, Light-ON |
| Response time | 0.5 ms |
| Material housing | PBT |
| Thread size | Other |
| Product Width (unpacked) | 10.8 mm |
| Product Height (unpacked) | 31 mm |
| Product Depth (unpacked) | 20 mm |
| Type of light | Laser diode, red light |
| Laser class | 1 |
| Spot size | 0.5 mm |
| Power supply voltage | 12-24 V |
| Features | High precision positioning & detection |
| Degree of protection (IP) | IP67 |
 |
E39-L104 | Mounting bracket for E3Z sensor, standard, vertical mounting |
|
 |
E39-L142 | Mounting Bracket, protective side wall (for E3Z) |
|
 |
E39-L144 | Sensor mounting Bracket, Protective bracket for E3Z pre-wired |
|
 |
E39-L150 | Sensor mounting Bracket for E3Z, 100mm high post |
|
 |
E39-L151 | Sensor mounting Bracket, for E3Z, 200mm high post |
|
 |
E39-L153 | Mounting bracket for E3Z sensor, L shape, for prewired |
|
 |
E39-L43 | Mounting bracket for E3Z sensor, side mounting |
|
 |
E39-L44 | Mounting bracket for E3Z sensor, rear mounting |
|
 |
E39-L98 | Protective metal cover for E3S-A/E3Z vertical sensor |
|
Datasheet
EN PDF
