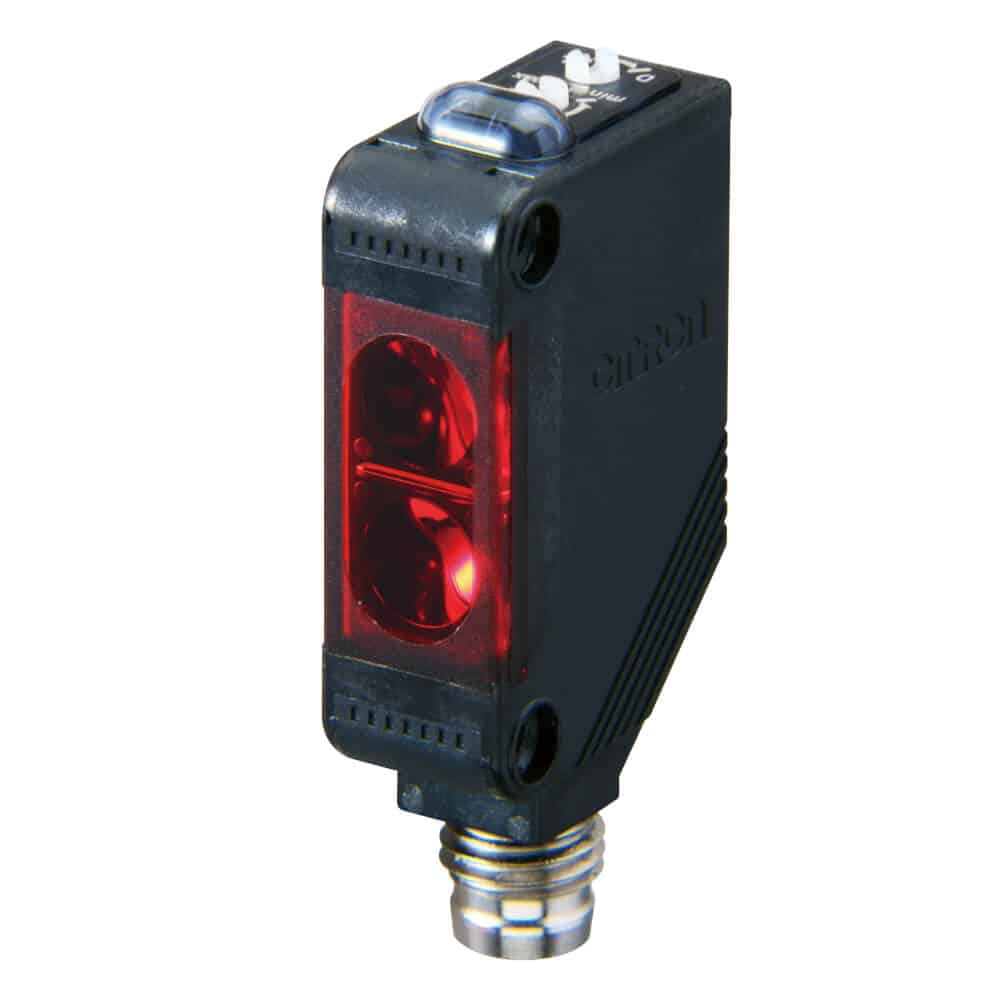

Photoelectric sensor, rectangular housing, red LED, retro-reflective, 4 m, NPN, Light-ON/Dark-ON, M8 4-pin connector
| Shape | Cuboid |
| Sensing method | Retro-reflective |
| Sensing distance | 4000 mm |
| Sensing distance (min.) | 100 mm |
| Setting method | Manual adjustment |
| Connection method | Connector M8 – 4 pin |
| Output type | NPN |
| Operation mode | Dark-ON, Light-ON |
| Response time | 1 ms |
| Material housing | PBT |
| Thread size | Other |
| Product Width (unpacked) | 10.8 mm |
| Product Height (unpacked) | 31 mm |
| Product Depth (unpacked) | 20 mm |
| Type of light | Polarized red light |
| Power supply voltage | 12-24 V |
| Features | M.S.R. |
| Degree of protection (IP) | IP67 |
 |
E39-L104 | Mounting bracket for E3Z sensor, standard, vertical mounting |
|
 |
E39-L142 | Mounting Bracket, protective side wall (for E3Z) |
|
 |
E39-L150 | Sensor mounting Bracket for E3Z, 100mm high post |
|
 |
E39-L151 | Sensor mounting Bracket, for E3Z, 200mm high post |
|
 |
E39-L203 | Mounting bracket for E3AS sensor, rear mounting |
|
 |
E39-L211 | Mounting bracket for E3AS sensor, L shaped |
|
 |
E39-L212 | Protective mounting bracket for E3AS, vertical mounting |
|
 |
E39-L214 | Protective metal cover for E3AS, horizontal surface mounting |
|
 |
E39-L43 | Mounting bracket for E3Z sensor, side mounting |
|
 |
E39-L44 | Mounting bracket for E3Z sensor, rear mounting |
|
| E39-L93FH | Mounting bracket for E3Z, 3D telescope mounting |
|
|
| E39-L93FV | Bracket for E3Z sensor |
|
|
 |
E39-L96 | Optional reflector bracket for photoelectric sensor |
|
 |
E39-L98 | Protective metal cover for E3S-A/E3Z vertical sensor |
|
 |
E39-R1S | Accessory photosensor, reflector, 40x60x7.5 mm, ABS & Acryllic |
|
 |
E39-R40 | Accessory photosensor, reflector, 84.5 x 84.5 x 8.7 mm, ABS & Acryllic |
|
 |
E39-R7 | Sensor reflector, round, 84mm dia |
|
 |
E39-RS1 | Reflective tape, self adhesive, 35 x 10 mm |
|
 |
E39-RS2 | Accessory photelectric sensor, reflective tape, 40 x 35 x 0.6, self adhesive |
|
 |
E39-RS25 5M | Accessory photoelectric sensor, reflective tape, 25 mm x 5 m |
|
 |
E39-RS3 | Reflective tape, self-adhesive, 70x80mm |
|
 |
E39-RS50 5M | Accessory photoelectric sensor, reflective tape, 50 mm x 5 m |
|
