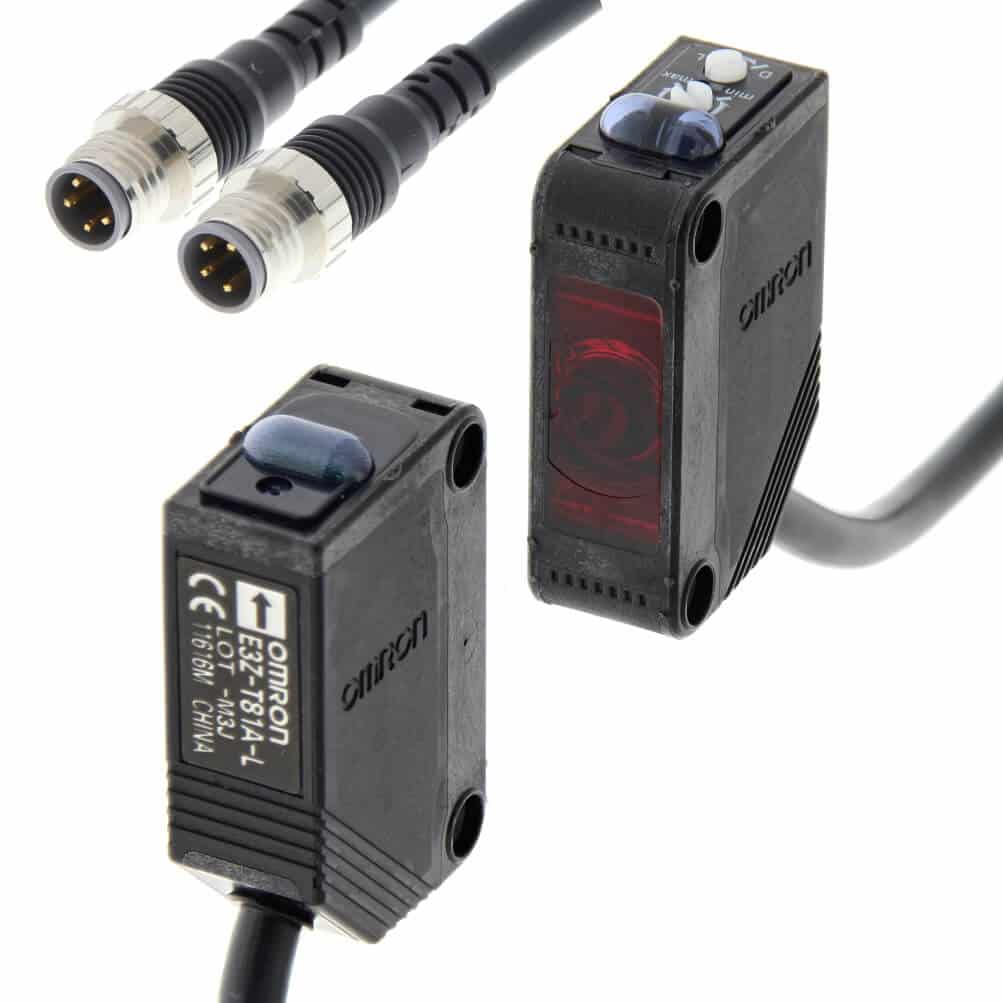

Photoelectric sensor, rectangular housing, red LED, through-beam, 10 m, PNP, Light-ON/Dark-ON, M8 pigtail connector 4-pin, 0.3 m
| Shape | Cuboid |
| Sensing method | Through-beam |
| Sensing distance | 10000 mm |
| Setting method | Manual adjustment |
| Connection method | M8 pigtail connector 4 pin |
| Cable length | 0.3 m |
| Output type | PNP |
| Operation mode | Dark-ON, Light-ON |
| Response time | 1 ms |
| Material housing | PBT |
| Thread size | Other |
| Product Width (unpacked) | 10.8 mm |
| Product Height (unpacked) | 31 mm |
| Product Depth (unpacked) | 20 mm |
| Type of light | Polarized red light |
| Power supply voltage | 12-24 V |
| Degree of protection (IP) | IP67 |
| E39-E11 | Mutual interference filters for the E3Z-TA models |
|
|
 |
E39-L104 | Mounting bracket for E3Z sensor, standard, vertical mounting |
|
 |
E39-L142 | Mounting Bracket, protective side wall (for E3Z) |
|
 |
E39-L144 | Sensor mounting Bracket, Protective bracket for E3Z pre-wired |
|
 |
E39-L153 | Mounting bracket for E3Z sensor, L shape, for prewired |
|
 |
E39-L43 | Mounting bracket for E3Z sensor, side mounting |
|
 |
E39-L98 | Protective metal cover for E3S-A/E3Z vertical sensor |
|
 |
E39-S65A | Slit for E3Z-T, 0.5mm diameter |
|
 |
E39-S65B | Slit for E3Z-T, 1mm diameter |
|
 |
E39-S65C | Slit for E3Z-T, 2mm diameter |
|
| E39-S65D | Slit for E3Z-T, 0.5 x 10 mm dia. |
|
|
| E39-S65E | Slit for E3Z-T, 1x10mm diameter |
|
|
 |
E39-S65F | Slit for E3Z-T, 2x10mm diameter |
|
Datasheet
EN PDF
