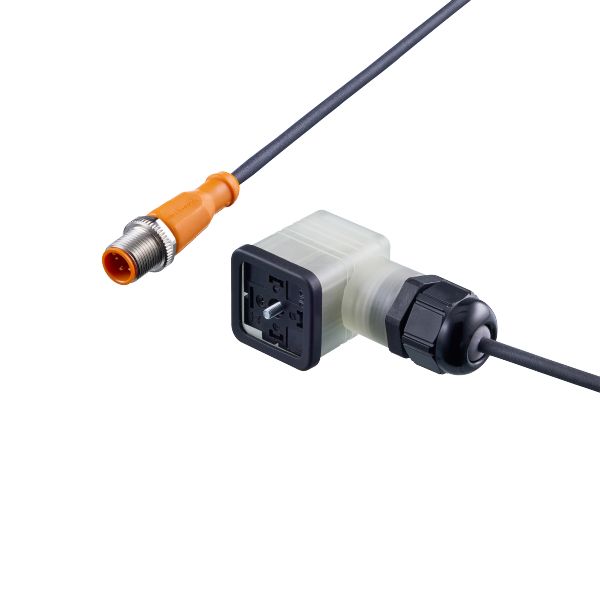

EC2088

  • Reliable connection of valves in the field
  • Angled type for use where space is restricted
  • Wide operating temperature range
  • Robust rectangular connector



SKU: EC2088

$58,00

Description

Application
Special feature Halogen-free
Electrical data
Operating voltage [V] < 250 AC/DC
Protection class II
Max. current load total [A] 4
Operating conditions
Ambient temperature [°C] -25…90
Note on ambient temperature
valve plug: -30 … 90 °C
M12 connector: -25 … 90 °C
Protection IP 65; (M12 connector: IP65, IP67, IP68, IP69K)
Mechanical data
Weight [g] 82
Moulded-body material PA-GF, Halogen-free / TPU, Halogen-free
Material nut steel, galvanised / brass, nickel-plated
Sealing material NBR / CR
Remarks
Pack quantity 1 pcs.
Electrical connection – socket
Connector: 1 x valve type A DIN, angled; Moulded body: PA-GF, Halogen-free, black; Locking: steel, galvanised; Sealing: NBR / CR; Contacts: brass; Tightening torque: 0.5…0.6 Nm
Electrical connection – Cable
Connection Cable: 0.24 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection – plug
Connector: 1 x M12, straight; coding: A; Moulded body: TPU, Halogen-free, orange; Locking: brass, nickel-plated; Tightening torque: 0.6…1.5 Nm

PDF data sheet
