EC3133

Description

Interfaces

WLAN

Frequency band

2400…2480 MHz (802.11b/g/n); 5150…5852 MHz (802.11a/h/j/n/ac)

Connector type

FAKRA

Note on interfaces

VSWR: < 2,0

Antenna gain (2,4 GHz): + 3 dBi

Antenna gain (5,3 GHz): + 1 dBi

Power: < 10 W

Operating conditions

Ambient temperature [°C]	-40…85
Protection	IP 69K

Tests / approvals

Standard	IEC 60068-2-14 Nb; IEC 60068-2-14 Na; IEC 60068-2-3 Db; IEC 60068-2-2; IEC 60068-2-27; ISO 16750-2; EN 45545-2; ECE R 118

Mechanical data

Remarks

When mounting the antenna(s) in vehicles avoid the vicinity of fuel tanks, vessels with explosives or insufficiently screened electronic components.

Do not install antenna inside closed metal construction (e.g. in driver’s cabin).

Clean the mounting surface before the installation.

Do not extend or shorten antenna cable.

Avoid direct exposure to steam or high-pressure cleaning during car wash.

Radio communication can affect the function of electronic devices that are not correctly shielded.

Contact the manufacturer of the corresponding device in case of any interference.

Pack quantity

1 pcs.

Electrical connection – WLAN / Bluetooth

	Cable: 2 m
	Connector: FAKRA I

Diagrams and graphs

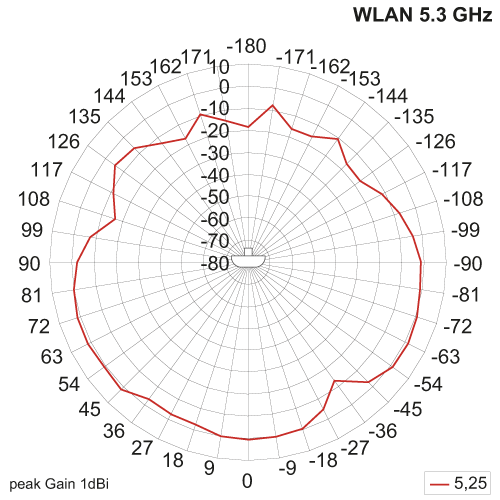

Funkdiagramm

	measured with a 0.6 m cable on a base area of 300 mm x 300 mm

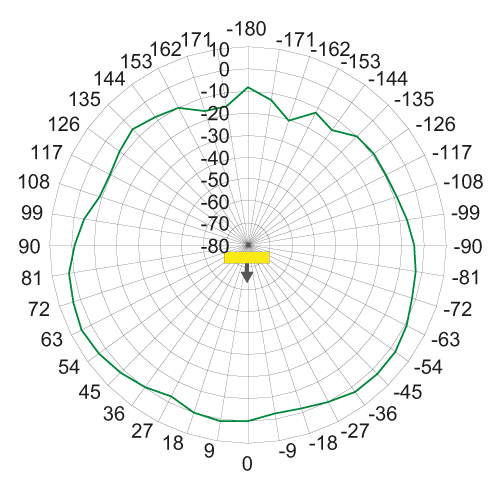

Funkdiagramm

	measured with a 0.6 m cable on a base area of 300 mm x 300 mm

Datasheet
EN PDF
