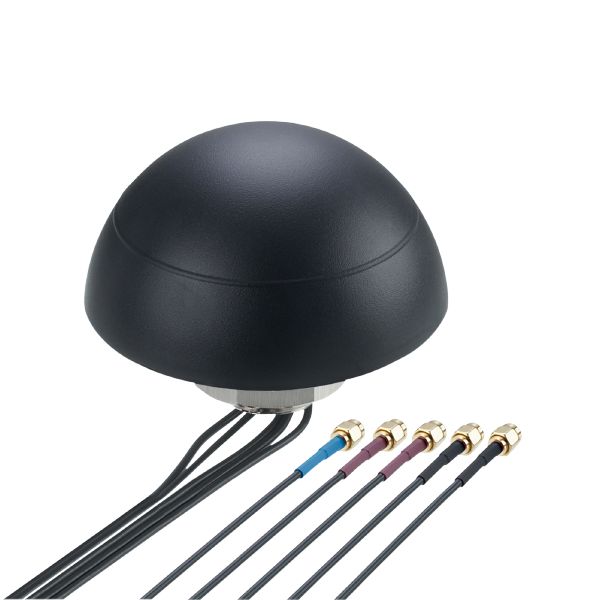

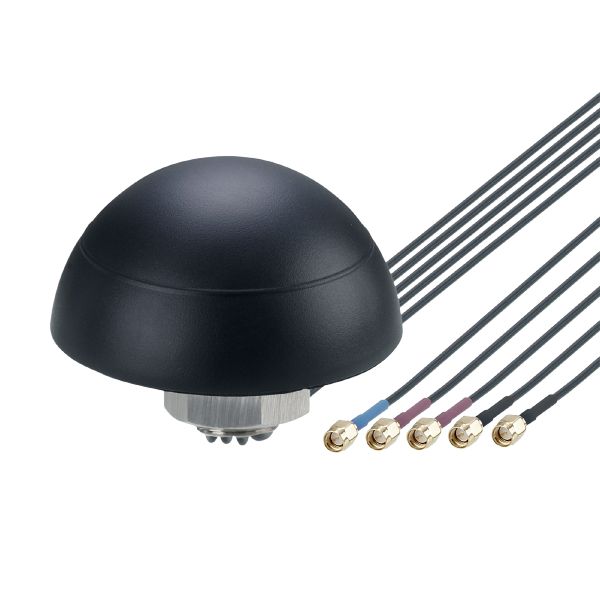

EC3170

SKU: EC3170

Description

Interfaces
GNSS
Frequency band 1575,42…1610 MHz
Connector type SMA
Note on interfaces
Operating voltage: 3…5 V DC
Current consumption: < 15 mA
Impedance: 50 Ohm
Polarisation: RHCP
LNA: 28 ± 2 dB
LNA V.S.W.R.: < 2,0
noise density: < 1,5 dB
Mobile networks
Transmission standard LTE Cat-4
Frequency band LTE: 698…960 MHz; 1710…2690 MHz
Connector type SMA
Note on interfaces
Impedance: 50 Ohm
Polarisation: linear vertical
WLAN
Frequency band 2400…2483,5 MHz; 4900…5825 MHz
Connector type SMA
Note on interfaces
Impedance: 50 Ohm
Polarisation: linear
noise density: 2 dBi
Operating conditions
Ambient temperature [°C] -40…85
Protection IP 67
Mechanical data
Weight [g] 597.5
Type of mounting screw mounting
Dimensions [mm] Ø 110 / L = 55
Materials ABS
Remarks
Pack quantity 1 pcs.
Electrical connection – GPS
Cable: 3 m
Connector: 1 x SMA
Electrical connection – Mobile networks
Cable: 3 m
Connector: 2 x SMA
Electrical connection – WLAN
Cable: 3 m
Connector: 2 x SMA



EC3170-00_EN-US

Datasheet
EN PDF
