$144,00
| Special feature | Gold-plated contacts | |
|---|---|---|

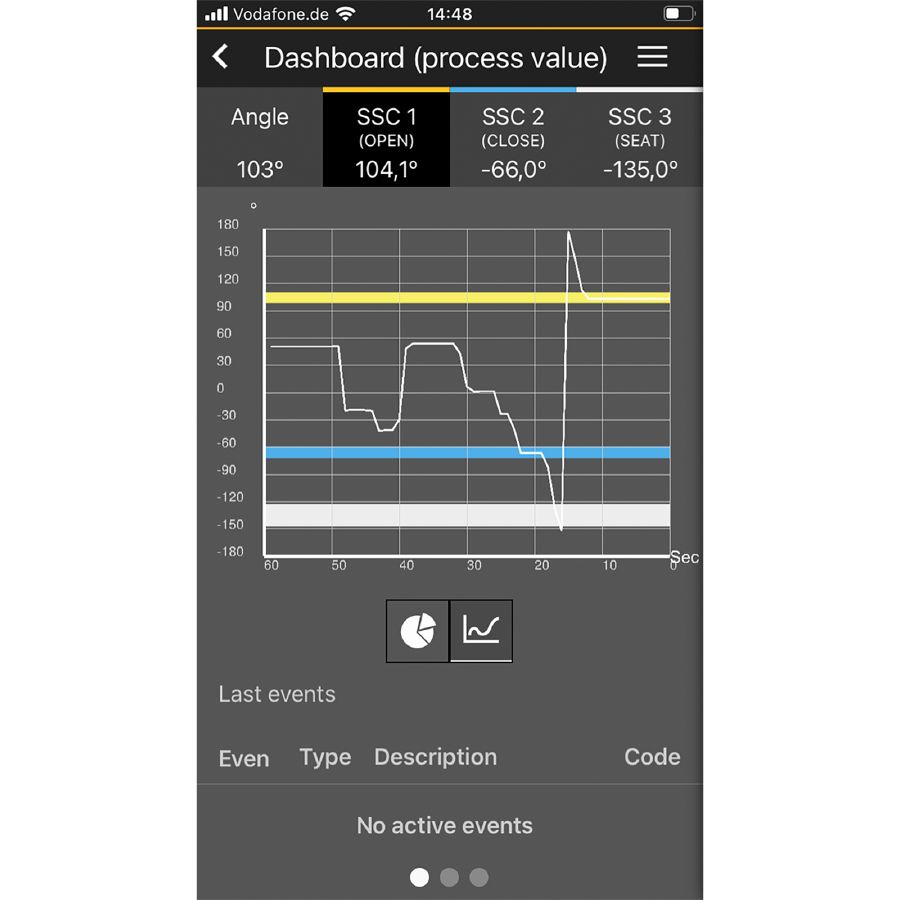

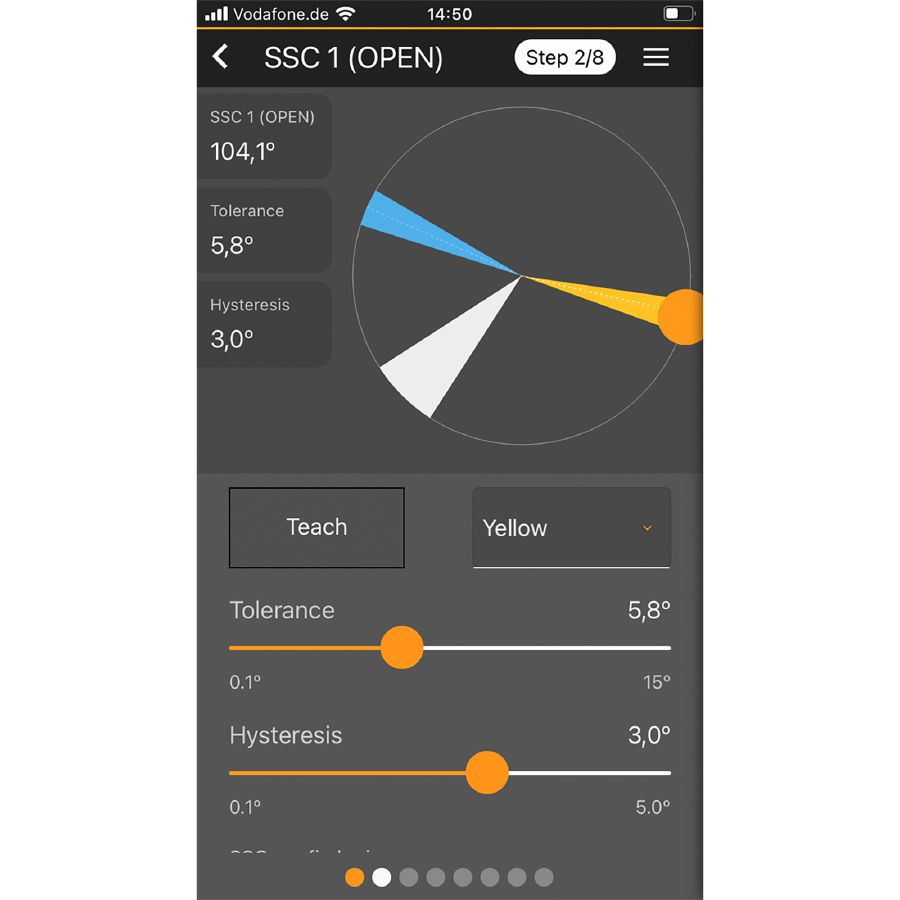

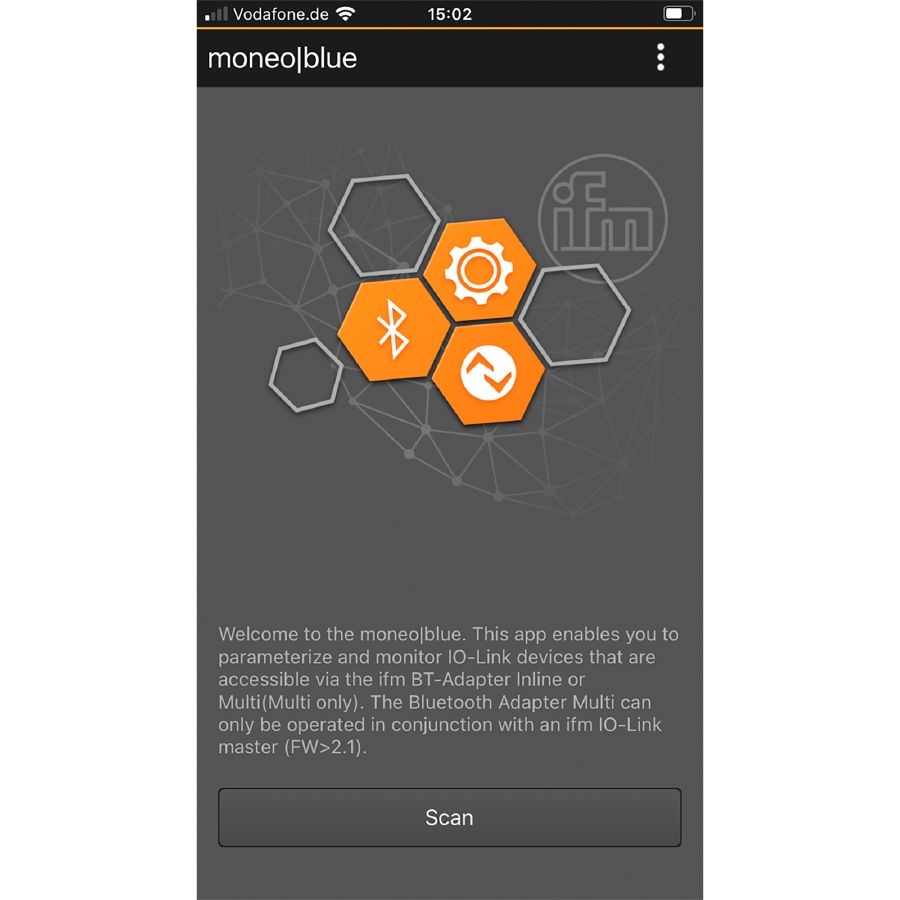

| Application | display of all process values of the sensors connected to the same master; device setup and diagnosis; parameter setting and analysis of units; Nur funktionsfähig mit ifm IO-Link Master ab Firmware 2.1 | |
| Radio approval for | EU/RED; Australia; USA; New Zealand; Canada; Japan; Brazil; China; South Africa; Argentina; Singapore; Mexico; Malaysia; Vietnam; Chile; Thailand; Taiwan; South Korea; India; Namibia; Indonesia | |
| Note on radio approval |
|
| Operating voltage [V] | 18…30 DC |
|---|---|
| Nominal voltage DC [V] | 24 |
| Current consumption [mA] | < 30 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | for IO-Link communication < 0,3; Bluetooth < 1 |
| Power-on delay time [s] | < 0.3 |
|---|
| Parameter setting options | process value recording |
|---|
| Communication interface | IO-Link; Bluetooth |
|---|
| Transmission standard | BLE 4.0; BLE 4.1; BLE 4.2; EDR 2.0; EDR 2.1 |
|---|---|
| Frequency band | 2,4 – 2,482 GHz |
| Transmission power [mW] | 10; (10 dBm) |
| Range | typ. 20 m |
| Transmission type | COM3 (230,4 kBaud) | ||||
|---|---|---|---|---|---|
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Identification (0x8000); Diagnosis (0x8003); Extended Identification (0x8100) | ||||
| Required master port type | A | ||||
| Min. process cycle time [ms] | 2.3 | ||||
| Supported DeviceIDs |
|
| Ambient temperature [°C] | -25…60 |
|---|---|
| Storage temperature [°C] | -40…70 |
| Protection | IP 67; IP 69K |
| EMC |
|
||||||
|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||
| Vibration resistance |
|
||||||
| MTTF [years] | 281 | ||||||
| UL approval |
|
| Weight [g] | 94 |
|---|---|
| Materials | stainless steel (1.4404 / 316L); PA; Sealing: FKM; |
| Display |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |

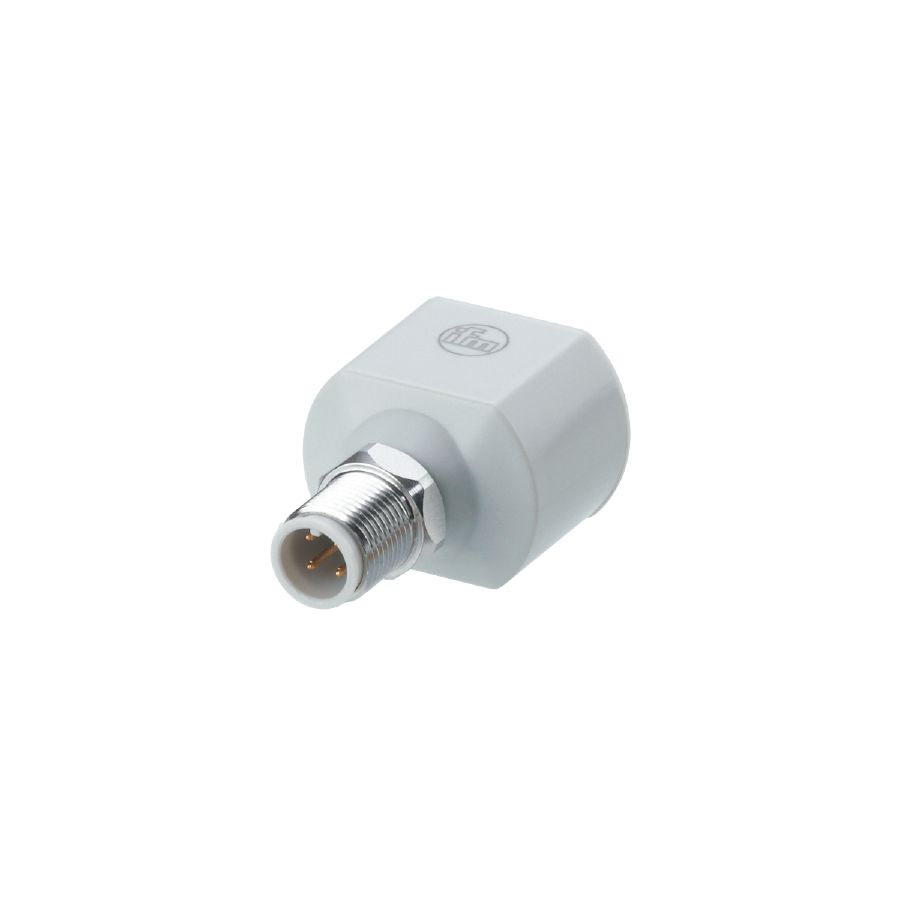

| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
