| Width | 52 mm |
| Height | 40 mm |
| Length | 70 mm |

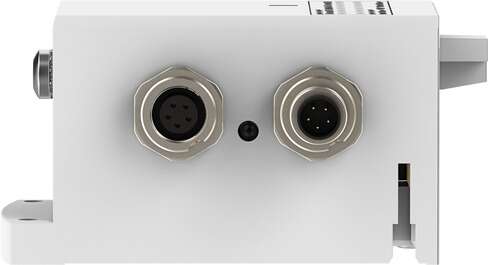

| Fieldbus interface | M9, 5-pin, socket and plug |
| Device-specific diagnostics | Valve manifold undervoltage |
| Communication types | CP fieldbus |
| Max. no. of solenoid coils | 16 |
| Parameterization | Parameterization via CP protocol |
| Reverse polarity protection | for all electrical operating voltage connections |
| Protocol | CP fieldbus |
| Current consumption at load nominal operating voltage | Depending on pneumatic valve type and number of pneumatic valves |
| Current consumption at nominal operating voltage | Electronics: <= 100 mA |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Storage temperature | -20 °C … 50 °C |
| Relative air humidity | 90 % at 50 °CNon-condensing |
| Protection against direct and indirect contact | PELV |
| Degree of protection | IP20as per IEC 60529 |
| Ambient temperature | -5 °C … 50 °C |
| Certification | c UL us – Recognized (OL) |
| Product weight | 150 g |
| LED display (bus-specific) | CP: CP fieldbus |
| Type of mounting | With through-hole |
| Housing material | PA-reinforced |
| Note on materials | RoHS-compliant |
